DD24W7 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

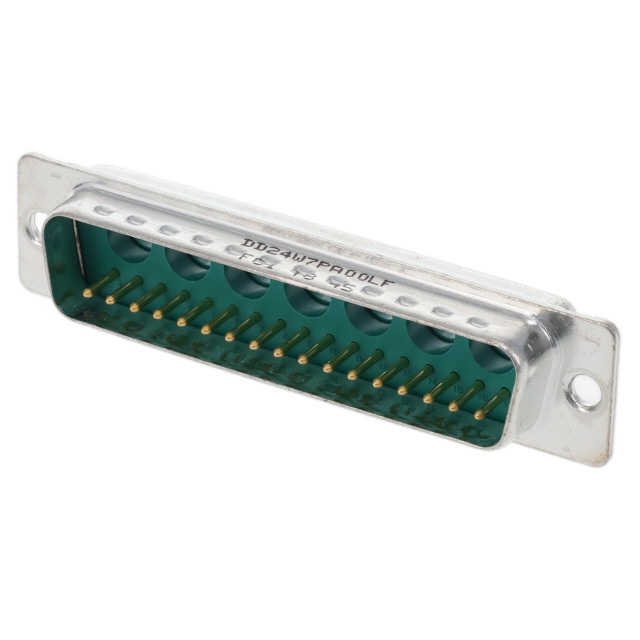

CONN D-SUB PLUG 24POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish | Features | Number of Positions | Mounting Type | Contact Type | Termination | Connector Type | Number of Rows | Shell Size, Connector Layout | Connector Style | Dielectric Material | Flange Feature | Voltage Rating | Material Flammability Rating | Contact Material | Shell Material, Finish | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A 40 A | Gold | Grounding Indents | 24 | Through Hole | Signal and Power | Solder | Male Pins Plug | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | |||||
Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A | Gold | Grounding Indents | 24 | Through Hole | Signal and Power | Solder | Male Pins Plug | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | 300 VDC | UL94 V-0 | |||
 Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A | Grounding Indents | 24 | Free Hanging (In-Line) | Signal and Power | Male Pins Plug | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | 300 VDC | UL94 V-0 | Brass | Nickel Plated Steel | |||
 Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A | 24 | Free Hanging (In-Line) | Signal and Power | Receptacle Female Sockets | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | 300 VDC | UL94 V-0 | Phosphor Bronze | Nickel Plated Steel | 20 AWG | |||
Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A | Gold | 24 | Free Hanging (In-Line) | Signal and Power | Receptacle Female Sockets | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | 300 VDC | UL94 V-0 | Phosphor Bronze | ||||

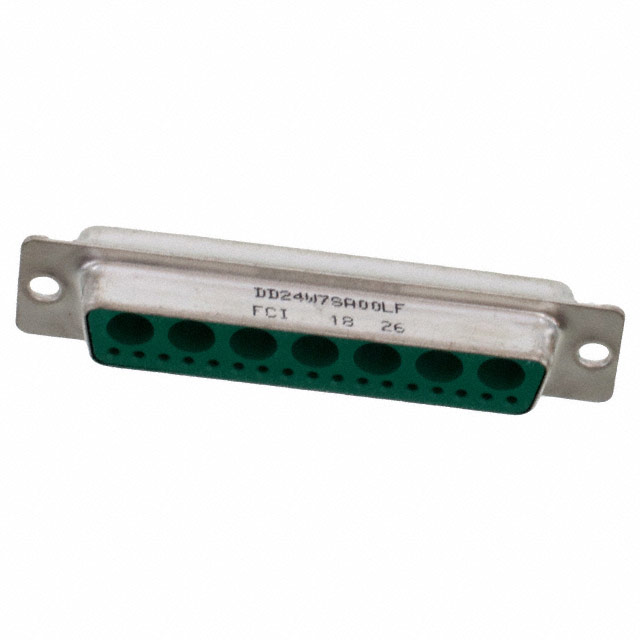

Amphenol ICC (FCI) | -55 °C | 125 °C | 7.5 A | Gold | 24 | Through Hole | Signal and Power | Solder | Receptacle Female Sockets | 2 | 5 (DD D) - 24W7 | Combo D-Sub | Thermoplastic | Housing/Shell (Unthreaded) | 300 VDC | UL94 V-0 | Brass |
