222JJVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Mechanical Life	Switch Travel	Actuator Material	Mounting Type	Features	Actuator Orientation	Circuit	Actuator Height off PCB, Vertical [z]	Switch Function	Ingress Protection	Termination Style	Actuator Type	Operating Force	Contact Rating @ Voltage	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]

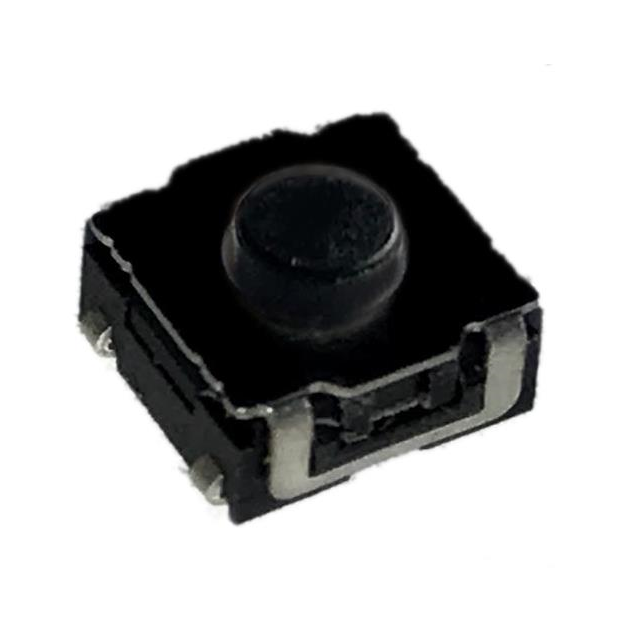

CTS Electrocomponents 222JJVACR	1000000 Cycles	0.35 mm	Silicone Rubber	Surface Mount	Tactile Feedback	Top Actuated	SPST-NO	3.5 mm	Off-Mom	IP67 - Dust Tight Waterproof	J Lead	Standard	160 gf	0.05 A 32 VDC	Non-Illuminated	85 °C	-40 C	6.2 mm	6.2 mm

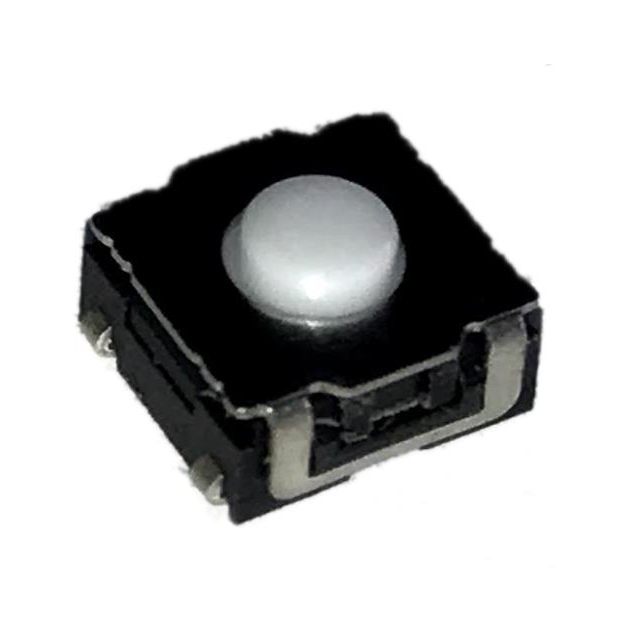

CTS Electrocomponents 222JJVABR	300000 Cycles	0.5 mm	Silicone Rubber	Surface Mount	Tactile Feedback	Top Actuated	SPST-NO	3.5 mm	Off-Mom	IP67 - Dust Tight Waterproof	J Lead	Standard	350 gf	0.05 A 32 VDC	Non-Illuminated	85 °C	-40 C	6.2 mm	6.2 mm
CTS Electrocomponents 222JJVABRD	300000 Cycles	0.5 mm	Silicone Rubber	Surface Mount		Top Actuated	SPST-NO	3.5 mm	Off-Mom	IP67 - Dust Tight Waterproof	J Lead	Standard	350 gf	0.01 A 32 VDC	Non-Illuminated	85 °C	-40 C	6.2 mm	6.2 mm
