2816-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

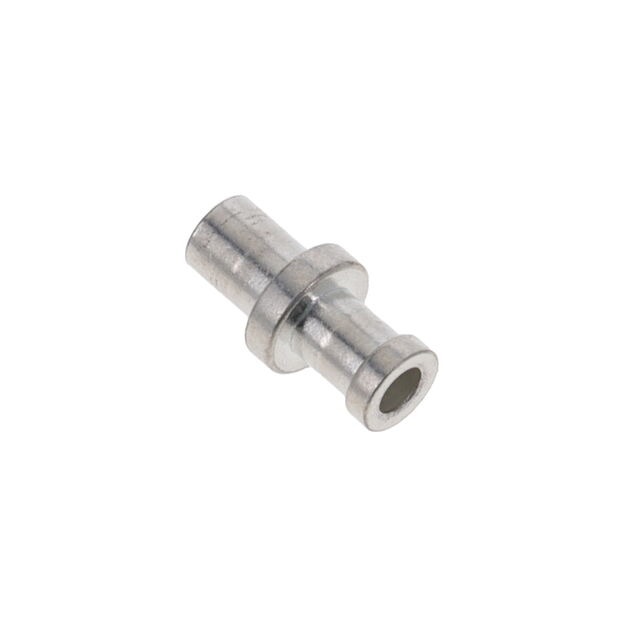

TERM TURRET SINGLE L=4.75MM
| Part | Contact Finish Thickness | Contact Finish Thickness | Board Thickness [custom] | Board Thickness [custom] | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Length - Above Board [x] | Length - Above Board [x] | Terminal Type | Staking Side ID | Staking Side ID | Mounting Type | Number of Turrets | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Termination | Staking Side OD [diameter] | Staking Side OD [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 7.62 µm | 300 µin | 0.094 in | 2.39 mm | Brass Alloy | 3.58 mm | 0.141 " | Silver | 8.33 mm | 0.328 in | 0.171 " | 4.34 mm | 0.116 in | 2.95 mm | Non-Insulated | 0.187 in | 4.75 mm | Single End | 2.11 mm | 0.083 in | Through Hole | Single | 0.073 in | 1.85 mm | Swage | 2.84 mm | 0.112 " |
 Mill-Max Manufacturing Corp. | 5.08 Ám | 200 Áin | 0.094 in | 2.39 mm | Brass Alloy | 3.58 mm | 0.141 " | Tin-Lead | 8.33 mm | 0.328 in | 0.171 " | 4.34 mm | 0.116 in | 2.95 mm | Non-Insulated | 0.187 in | 4.75 mm | Single End | 2.11 mm | 0.083 in | Through Hole | Single | 0.073 in | 1.85 mm | Swage | 2.84 mm | 0.112 " |
