86404CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

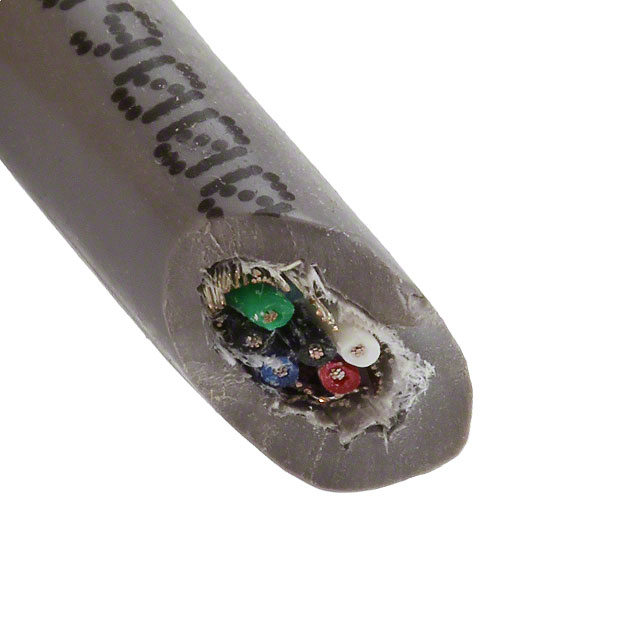

MULTI-CONDUCTOR CABLES 28 AWG 4 PAIR CONDUCTOR 600V SUPRASHIELD PVC PVC, 1000 FT SPOOL - SLATE
| Part | Shield Material | Shield Coverage | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Length | Length | Jacket Color | Cable Type | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Material | Conductor Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | 8 | 28 AWG | 7 | 36 AWG | ISO 10993 UL Style 2661 | 304.8 m | 1000 ft | Slate | Multi-Pair | Poly-Vinyl Chloride (PVC) | 300 VDC | 1.143 mm | 0.045 in | 0.256 in | 6.5 mm | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire |
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | 8 | 28 AWG | 7 | 36 AWG | ISO 10993 UL Style 2661 | Slate | Multi-Pair | Poly-Vinyl Chloride (PVC) | 300 VDC | 1.143 mm | 0.045 in | 0.256 in | 6.5 mm | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire |
