ADS5400-SP Series
QMLV, 50-krad, ceramic, 12-bit, single-channel, 1-GSPS ADC
Manufacturer: Texas Instruments
Catalog
QMLV, 50-krad, ceramic, 12-bit, single-channel, 1-GSPS ADC
Key Features
• 1-GSPS sample rate12-Bit resolution2.1 GHz input bandwidthSFDR = 65 dBc at 1.2 GHzSNR = 57 dBFS at 1.2 GHZ7 Clock cycle latencyInterleave friendly: internal adjustments for gain, phase and offset1.5 - 2 VPPDifferential input voltage, programmableLVDS-compatible outputs, 1 or 2 bus optionsTotal power dissipation: 2.2 WOn-chip analog buffer100-pin ceramic nonconductive tie-bar packageMilitary temperature range(–55°C to 125°C Tcase)Processed per internal QML class V assembly/test flowQML class V qualified, SMD 5962-092401-GSPS sample rate12-Bit resolution2.1 GHz input bandwidthSFDR = 65 dBc at 1.2 GHzSNR = 57 dBFS at 1.2 GHZ7 Clock cycle latencyInterleave friendly: internal adjustments for gain, phase and offset1.5 - 2 VPPDifferential input voltage, programmableLVDS-compatible outputs, 1 or 2 bus optionsTotal power dissipation: 2.2 WOn-chip analog buffer100-pin ceramic nonconductive tie-bar packageMilitary temperature range(–55°C to 125°C Tcase)Processed per internal QML class V assembly/test flowQML class V qualified, SMD 5962-09240
Description
AI

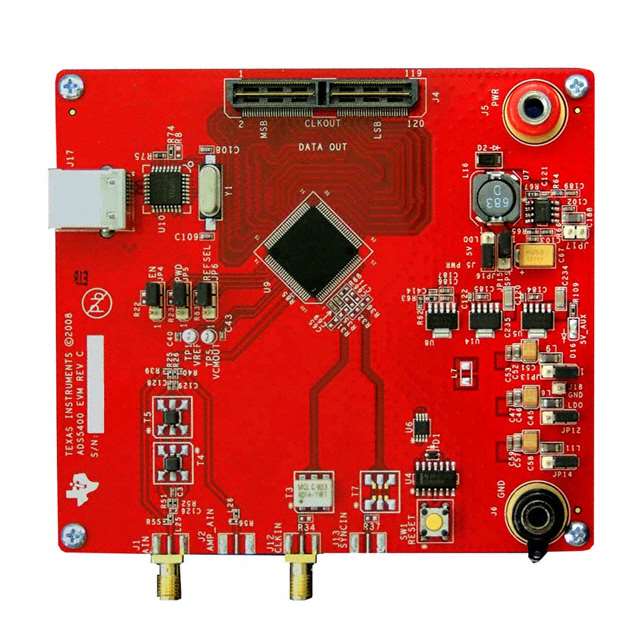

The ADS5400 is a 12-bit, 1-GSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3-stage pipeline provides extremely low latency for time critical applications. Designed for the conversion of signals up to 2 GHz of input frequency at 1 GSPS, the ADS5400 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.

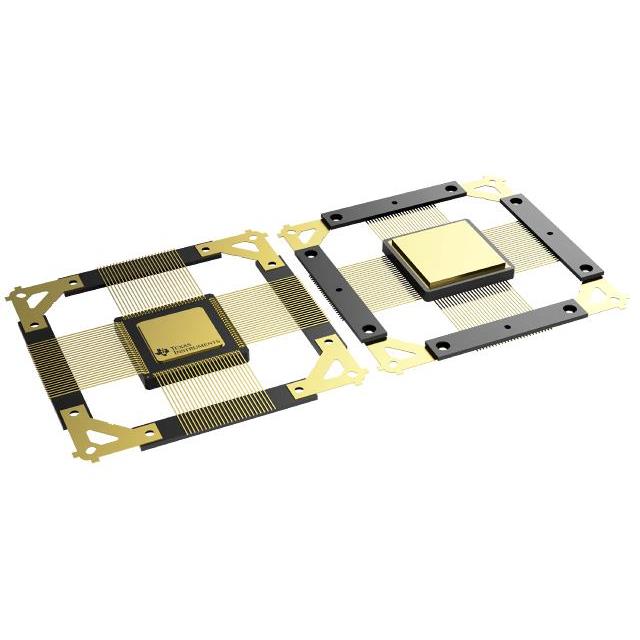

The ADS5400 is available in a 100-Pin Ceramic Nonconductive Tie-Bar Package. The combination of the ceramic package and moderate power consumption of the ADS5400 allows for operation without an external heatsink. The ADS5400 is built on Texas Instrument’s complementary bipolar process (BiCom3) and is specified over the full military temperature range (–55°C to 125°C Tcase).
The ADS5400 is a 12-bit, 1-GSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3-stage pipeline provides extremely low latency for time critical applications. Designed for the conversion of signals up to 2 GHz of input frequency at 1 GSPS, the ADS5400 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.
The ADS5400 is available in a 100-Pin Ceramic Nonconductive Tie-Bar Package. The combination of the ceramic package and moderate power consumption of the ADS5400 allows for operation without an external heatsink. The ADS5400 is built on Texas Instrument’s complementary bipolar process (BiCom3) and is specified over the full military temperature range (–55°C to 125°C Tcase).
