90098 Series

Catalog

CONN HEADER SMD 40POS 1.27MM

Part	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Connector Type	Number of Positions	Features	Mated Stacking Heights	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating
Amphenol ICC (FCI) 90098-120TRLF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	40	Board Guide Pick and Place	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-120	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	40	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin-Lead	Gold or Gold GXT™	0.05 in	1.27 mm

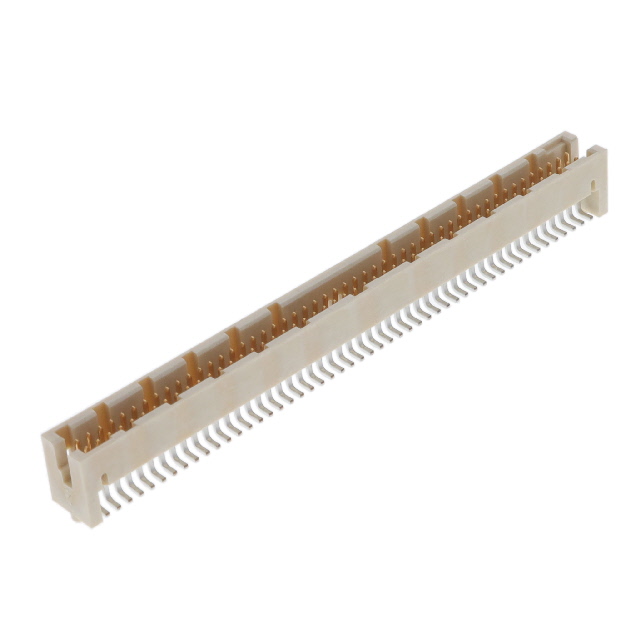

Amphenol ICC (FCI) 90098-150LF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	100	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-125TRLF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	50	Board Guide Pick and Place	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-120LF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	40	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-105TRLF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	10	Board Guide Pick and Place	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-110	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	20	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin-Lead	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-140	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	80	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin-Lead	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-105	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	10	Board Guide	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin-Lead	Gold or Gold GXT™	0.05 in	1.27 mm
Amphenol ICC (FCI) 90098-120CTLF	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	130 °C	-55 °C	Square	Solder	Natural	2.54 µm	100 µin	0.13 in	3.3 mm	2	Header	40	Board Guide Pick and Place	8.26 mm	Push-Pull	0.298 in	7.57 mm	UL94 V-0	All	0.05 in	1.27 mm	Surface Mount	Tin	Gold or Gold GXT™	0.05 in	1.27 mm
