94063 Series

Catalog

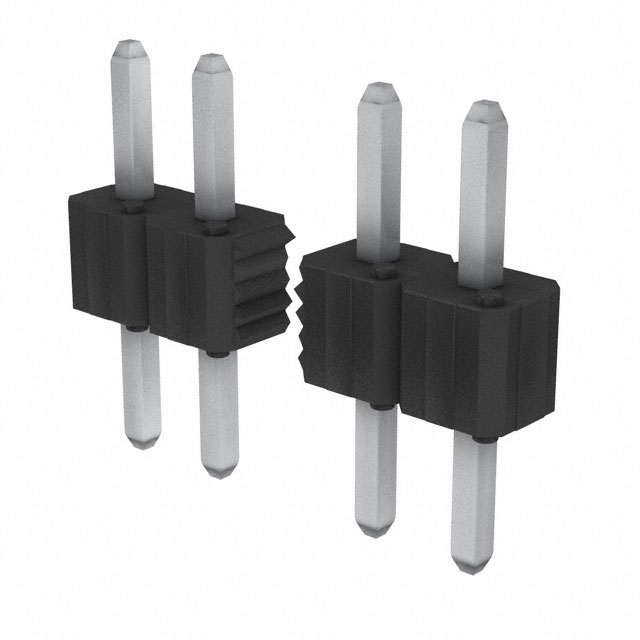

CONN HEADER VERT 13POS 2.54MM

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Height	Insulation Height	Shrouding	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Contact Type	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Insulation Color	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 94063-113HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	Solder	13	30 Áin	0.76 Ám	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in
Amphenol ICC (FCI) 94063-416	Through Hole	0.1 in	2.54 mm	All				0.1 in	2.54 mm	Unshrouded	Solder		100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin		UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in	16
Amphenol ICC (FCI) 94063-114HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	Solder	14	30 Áin	0.76 Ám	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in
Amphenol ICC (FCI) 94063-103HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	Solder		30 Áin	0.76 Ám	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in
Amphenol ICC (FCI) 94063-411HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C		0.1 in	2.54 mm	Unshrouded	Solder	11	100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in		Tin
Amphenol ICC (FCI) 94063-106HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C	Gold or Gold GXT™	0.1 in	2.54 mm	Unshrouded	Solder	6	30 Áin	0.76 Ám	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in
Amphenol ICC (FCI) 94063-407HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C		0.1 in	2.54 mm	Unshrouded	Solder	7	100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in		Tin
Amphenol ICC (FCI) 94063-422HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C		0.1 in	2.54 mm	Unshrouded	Solder	22 positions	100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in		Tin
Amphenol ICC (FCI) 94063-424HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C		0.1 in	2.54 mm	Unshrouded	Solder	24	100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in		Tin
Amphenol ICC (FCI) 94063-410HLF	Through Hole	0.1 in	2.54 mm	All	-65 ░C	130 °C		0.1 in	2.54 mm	Unshrouded	Solder	10	100 çin	2.54 çm	1	0.138 in	3.5 mm	Square	3.5 mm	0.138 in	Phosphor Bronze	Male Pin	3 A	UL94 V-0	Push-Pull	Black	Header	9.55 mm	0.376 in		Tin
