ATS-EXL Series

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

Catalog

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

...

Part	Material Finish	Material	Thermal Resistance @ Forced Air Flow	Width	Width	Type	Fin Height [custom]	Fin Height [custom]	Length	Length	Shape [custom]	Shape [custom]	Thermal Resistance @ Natural	Attachment Method	Width [x]	Width [x]	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]	Width	Fin Height [custom]
Advanced Thermal Solutions Inc. ATS-EXL98-300-R0	Degreased	Aluminum	0.95 °C/W	120 mm	4.724 "	Extrusion Top Mount	36 mm	1.417 in	11.811 in	300 mm	Rectangular	Fins	4.69 °C/W	Adhesive

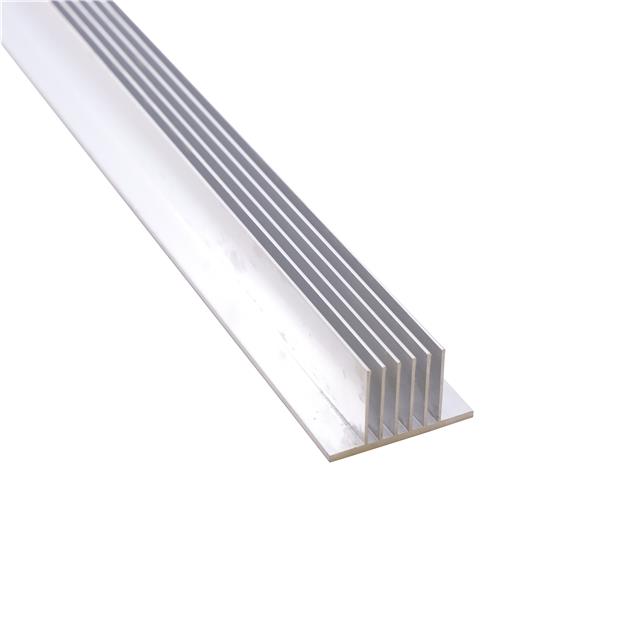

Advanced Thermal Solutions Inc. ATS-EXL65-1220-R0	Degreased	Aluminum	4.5 °C/W			Extrusion Top Mount			48.032 in	1.22 m	Rectangular	Fins	11.7 °C/W	Adhesive	1.614 in	41 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-EXL110-1220-R0	Degreased	Aluminum	0.72 °C/W			Extrusion Top Mount			48.032 in	1.22 m	Rectangular	Fins	2.47 °C/W	Adhesive	7.874 in	200 mm			45 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-EXL76-300-R1	Degreased	Aluminum	0.5 °C/W	93.4 mm		Extrusion Top Mount			11.811 in	300 mm	Rectangular	Fins	5.2 °C/W	Adhesive					40 mm	1.575 in	3.677 "
Advanced Thermal Solutions Inc. ATS-EXL67-1220-R0	Degreased	Aluminum	5.8 °C/W			Extrusion Top Mount			48.032 in	1.22 m	Rectangular	Fins	21.7 °C/W	Adhesive	1.083 "	27.5 mm	13.5 mm	0.531 "

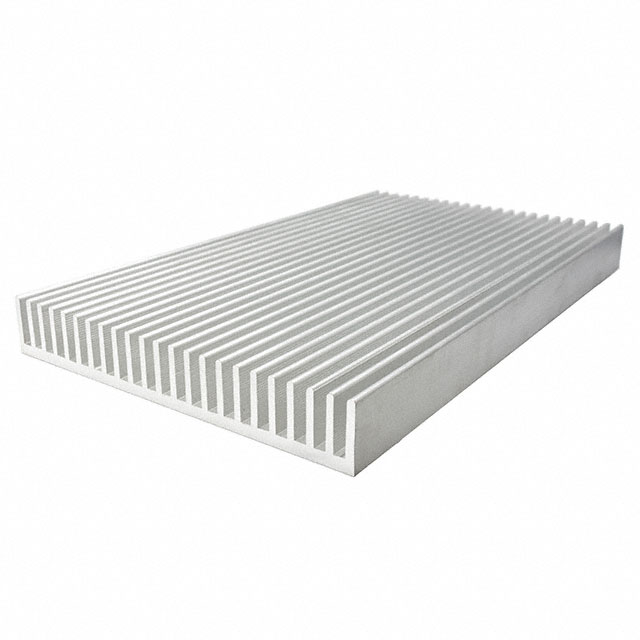

Advanced Thermal Solutions Inc. ATS-EXL103-300-R0	Degreased	Aluminum	1.12 °C/W	115 mm	4.528 in	Extrusion Top Mount			11.811 in	300 mm	Rectangular	Fins	4.61 °C/W	Adhesive			33.6 mm					1.323 in
Advanced Thermal Solutions Inc. ATS-EXL61-1220-R0	Degreased	Aluminum	29 °C/W			Extrusion Top Mount			48.032 in	1.22 m	Rectangular	Fins	57 °C/W	Adhesive	0.591 in	15 mm	6 mm	0.236 "

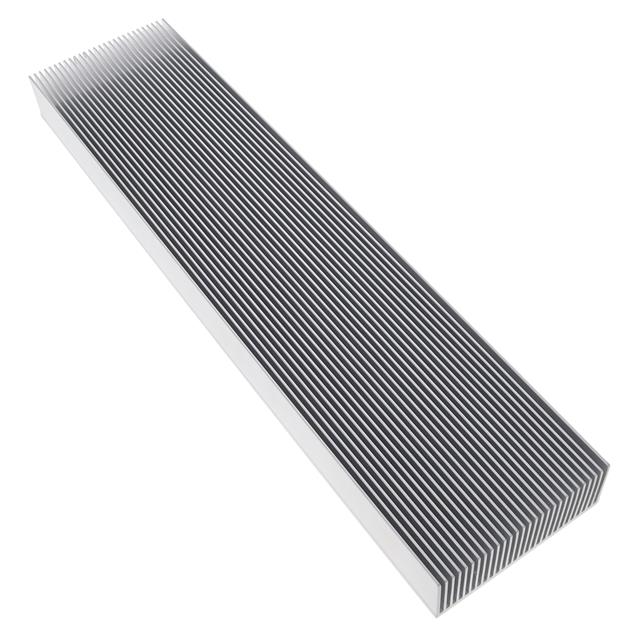

Advanced Thermal Solutions Inc. ATS-EXL84-300-R0	Degreased	Aluminum				Extrusion Top Mount			11.811 in	300 mm	Rectangular	Fins		Adhesive	2.756 "	70 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-EXL64-300-R0	Degreased	Aluminum	3.9 °C/W			Extrusion Top Mount			11.811 in	300 mm	Rectangular	Fins	18.5 °C/W	Adhesive	0.984 "	25 mm	22 mm	0.866 in

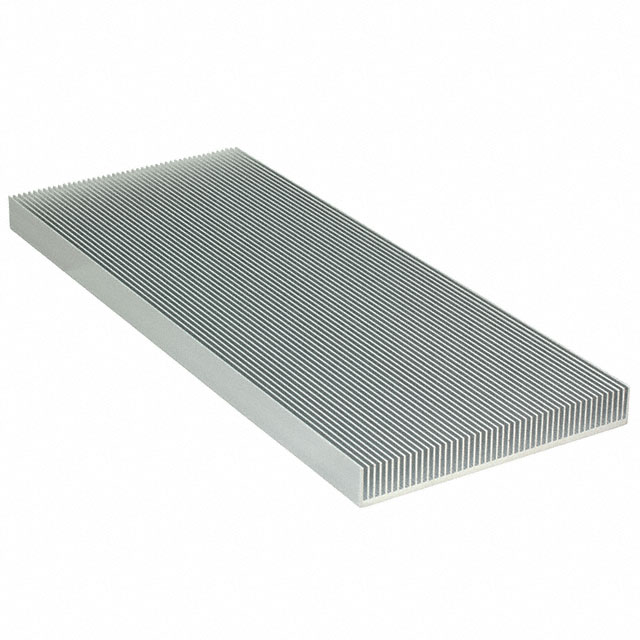

Advanced Thermal Solutions Inc. ATS-EXL77-300-R0	Degreased	Aluminum	1 °C/W			Extrusion Top Mount			11.811 in	300 mm	Rectangular	Fins	12 °C/W	Adhesive	4.754 in	120.75 mm	16.6 mm	0.654 in
