284509 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

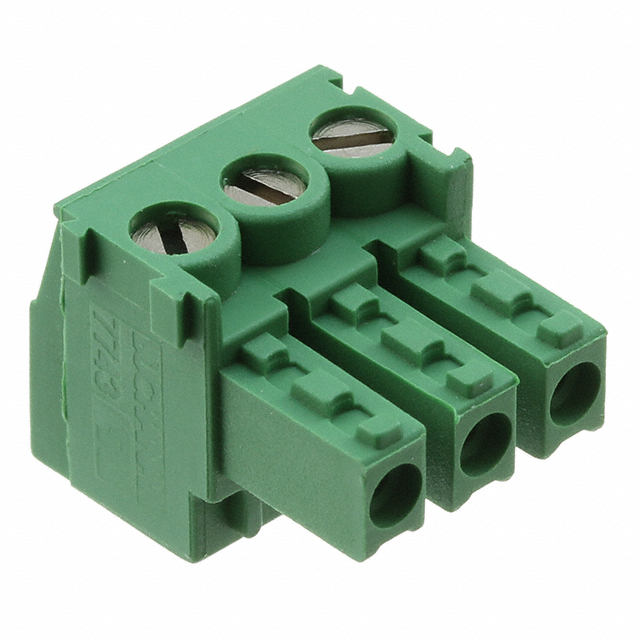

(284509-3) 3P TERMI-BLOK PLUG STACK 3,8

Part	Termination Style	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Mating Finish	Positions Per Level	Voltage - UL	Mounting Type	Wire Strip Length [Min]	Wire Strip Length [Max]	Screw Size	Type	Color	Torque - Screw	Torque - Screw	Contact Material	Number of Levels	Current - UL	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions
TE Connectivity Raychem Cable Protection 284509-3	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	3	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm	2 mm˛	0.05 mm˛	Interlocking (Side)
TE Connectivity Raychem Cable Protection 284509-6	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	6	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm			Interlocking (Side)	0.05 mm²	2 mm²	6
TE Connectivity Raychem Cable Protection 1-284509-2	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	12	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm	2 mm˛	0.05 mm˛	Interlocking (Side)			12
TE Connectivity Raychem Cable Protection 284509-5	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	5	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm			Interlocking (Side)	0.05 mm²	2 mm²
TE Connectivity Raychem Cable Protection 284509-9	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	9	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm	2 mm˛	0.05 mm˛	Interlocking (Side)			9
TE Connectivity Raychem Cable Protection 284509-8	Screw - Rising Cage Clamp	UL94 V-0	0.437 in	11.1 mm	-40 °C	110 °C	14 AWG	30 AWG	Tin	8	150 V	Free Hanging (In-Line)	5 mm	6 mm	M2	Plug Female Sockets	Green	2.2 Lb-In	0.25 Nm	Phosphor Bronze	1	12 A	0.15 in	3.81 mm			Interlocking (Side)	0.05 mm²	2 mm²	8
