2331813 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

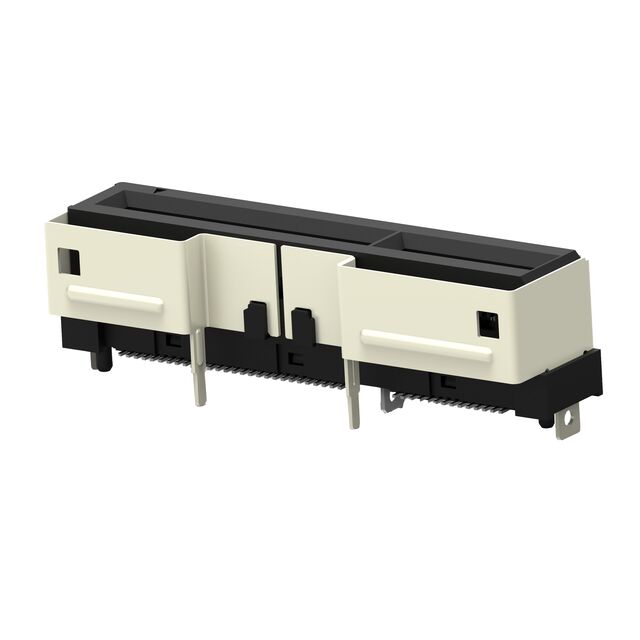

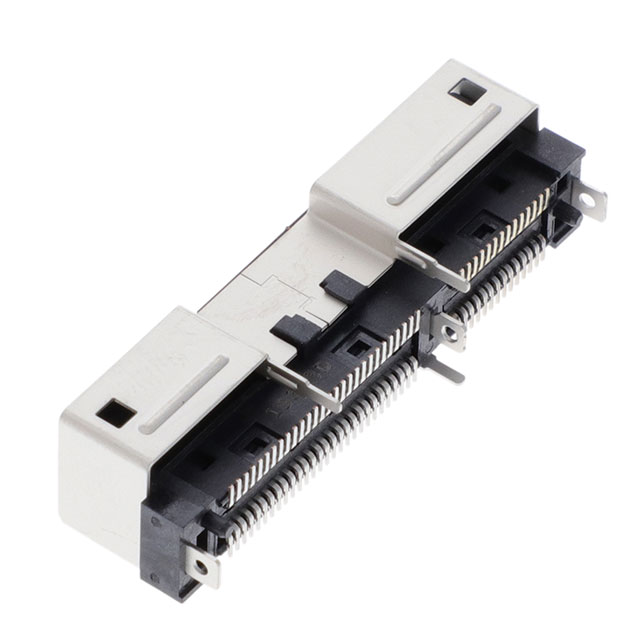

CONN EDGE DUAL FMALE 84POS 0.024
| Part | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Contact Finish | Termination | Number of Positions | Pitch [x] | Pitch [x] | Gender | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Features | Contact Material | Mounting Type | Card Thickness | Card Thickness | Color | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Termination Rows | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non Specified - Dual Edge | 15 µin | 0.38 µm | 2 | Dual | Gold | Solder | 84 | 0.6 mm | 0.024 in | Female | 28 | 14 | Board Guide Pick and Place Solder Retention | Copper Alloy | Surface Mount | 0.062 in | 1.57 mm | Black | 85 °C | -55 °C | Liquid Crystal Polymer (LCP) | ||||
 TE Connectivity Raychem Cable Protection | Non Specified - Dual Edge | 2 | Dual | Gold | Solder | 84 | 0.6 mm | 0.024 in | Female | Board Guide Pick and Place Solder Retention | Copper Alloy | Surface Mount | 0.062 in | 1.57 mm | Black | 85 °C | -55 °C | Liquid Crystal Polymer (LCP) | 2 | Flash | 14 | 28 |
