PPPC342 Series

Catalog

CONN HDR 68POS 0.1 GOLD PCB

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Termination	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Number of Rows [custom]	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

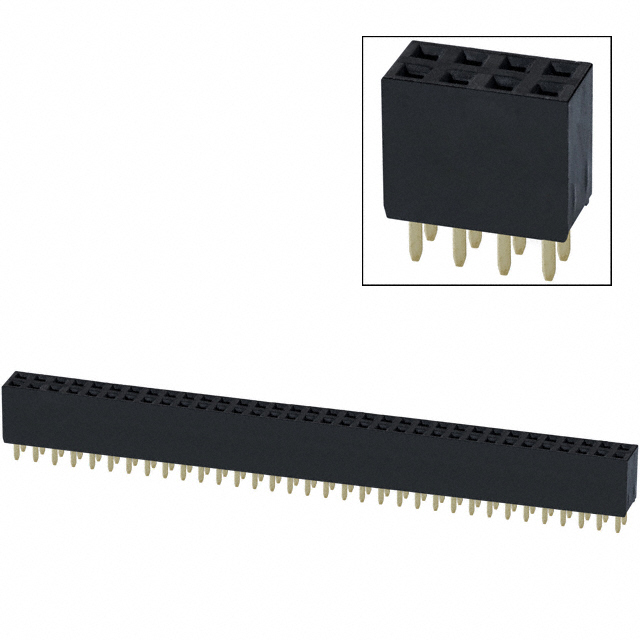

Sullins Connector Solutions PPPC342LFBN	Phosphor Bronze	Square	Flash	Polyester	0.1 in	2.54 mm	Black	Push-Pull	All	Gold	Solder	Gold	UL94 V-0	0.1 "	2.54 mm	Female Socket	Header	Flash	0.126 "	3.2 mm	0.335 "	8.51 mm	3 A	-40 C	105 ░C	68 positions	250 V	2	Through Hole

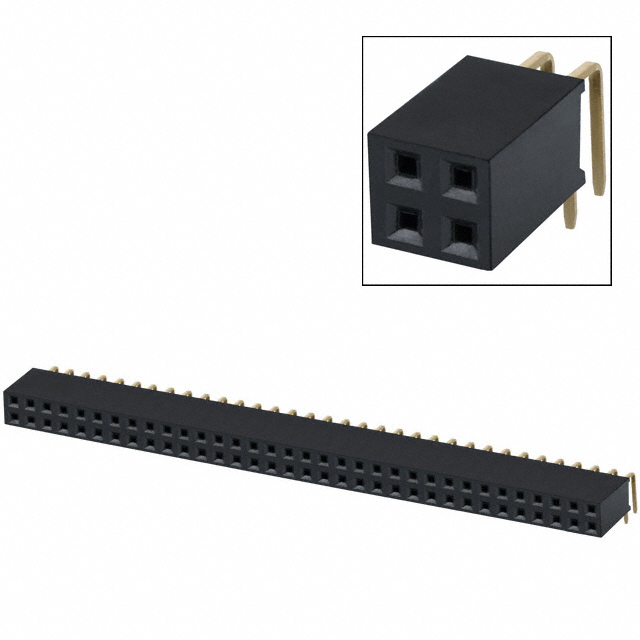

Sullins Connector Solutions PPPC342LJBN	Phosphor Bronze	Square	Flash	Polyester	0.1 in	2.54 mm	Black	Push-Pull	All	Gold	Solder	Gold	UL94 V-0	0.1 "	2.54 mm	Female Socket	Header	Flash					3 A	-40 C	105 ░C	68 positions	250 V	2	Right Angle Through Hole	0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC342KFMS	Phosphor Bronze	Square	Flash	Polyester	0.1 in	2.54 mm	Black	Push-Pull	All	Gold	Solder	Gold	UL94 V-0	0.1 "	2.54 mm	Female Socket	Header	Flash				7.6 mm	3 A	-40 C	125 °C	68 positions	250 V	2	Surface Mount	0.299 "
