A3F1ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 24V
| Part | Coil Resistance | Coil Power | Contact Material | Coil Type | Coil Current | Switching Voltage [Max] | Contact Rating (Current) | Release Time | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Features | Must Release Voltage | Must Operate Voltage | Termination Style | Mounting Type | Contact Form | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

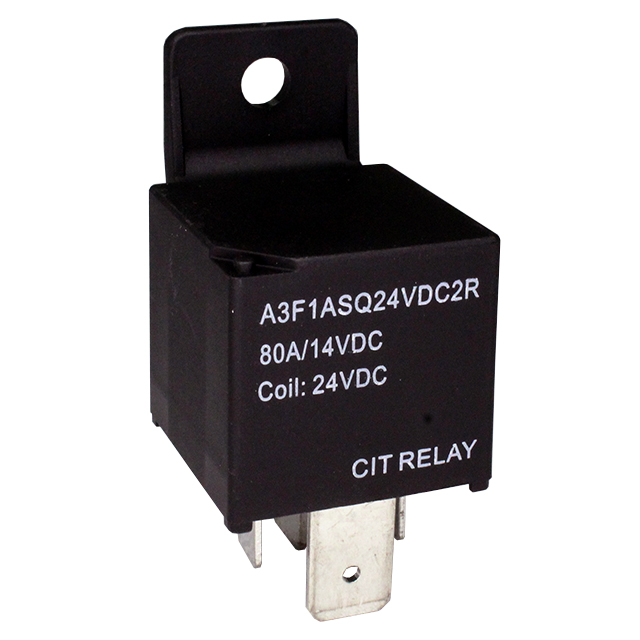

 CIT Relay and Switch | 320 Ohms | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | Non Latching | 0.075 A | 75 VDC | 80 A | 5 ms | 24 VDC | 125 °C | -40 C | Resistor Sealed - Fully | 2.4 VDC | 16.8 VDC | Quick Connect - Multiple Sizes | Chassis Mount | SPST-NO (1 Form A) | 7 ms |

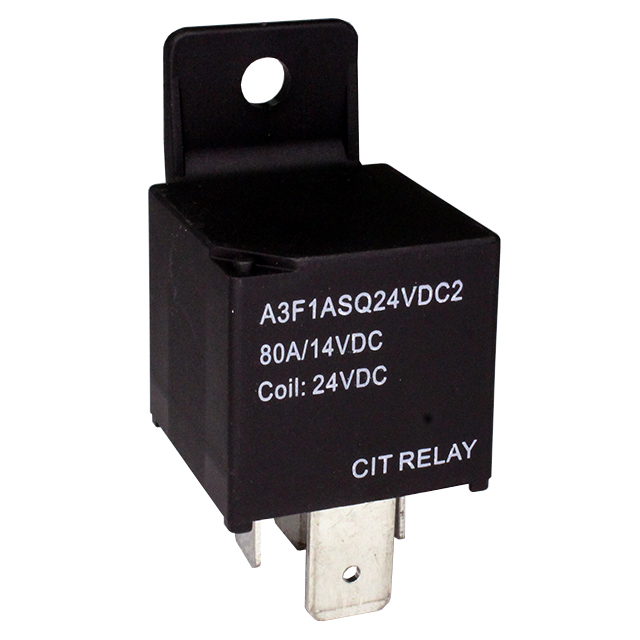

 CIT Relay and Switch | 320 Ohms | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | Non Latching | 0.075 A | 75 VDC | 80 A | 5 ms | 24 VDC | 125 °C | -40 C | Sealed - Fully | 2.4 VDC | 16.8 VDC | Quick Connect - Multiple Sizes | Chassis Mount | SPST-NO (1 Form A) | 7 ms |
