NCP81071 Series

High Speed 5A Dual Low Side MOSFET driver

Catalog

High Speed 5A Dual Low Side MOSFET driver

Part	Driven Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Package / Case	Package / Case [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Input Type

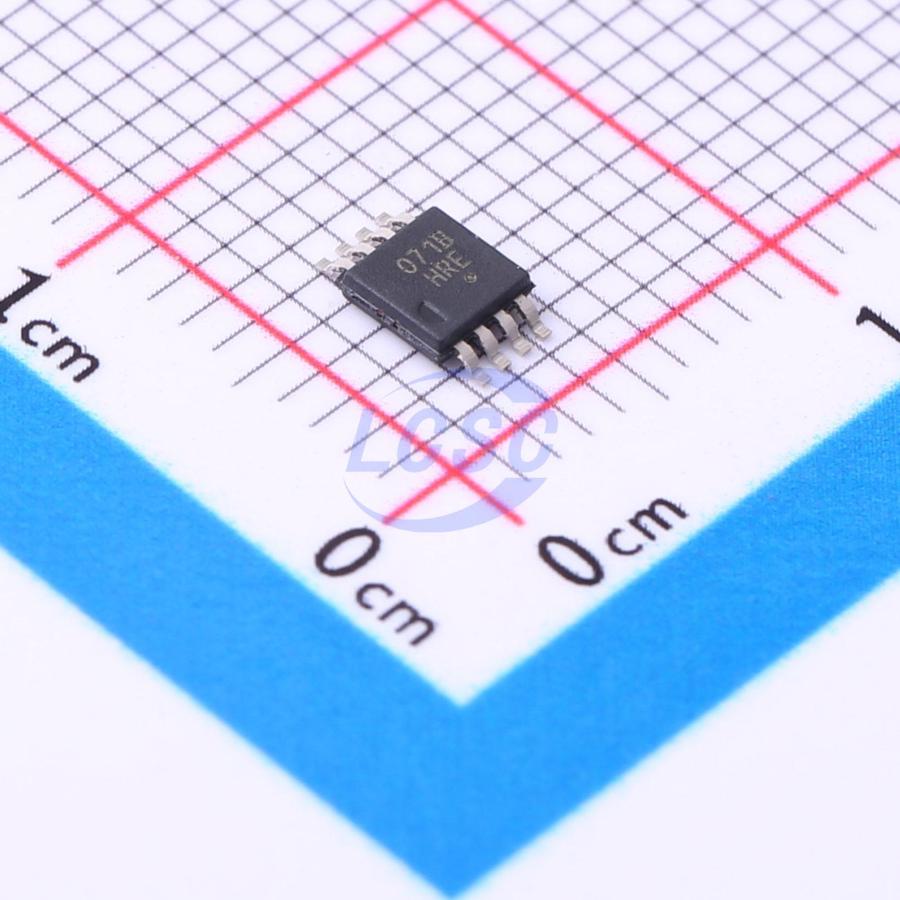

ON Semiconductor NCP81071BZR2G	Low-Side	20 V	4.5 V	Independent	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	-40 °C	140 °C	Surface Mount	2	8 ns	8 ns	1.2 V	1.8 V	MOSFET (N-Channel)	5 A	5 A	8-MSOP-EP	Non-Inverting
ON Semiconductor NCP81071BMNTXG	Low-Side	20 V	4.5 V	Independent	8-WDFN Exposed Pad		-40 °C	140 °C	Surface Mount	2	8 ns	8 ns	1.2 V	1.8 V	N-Channel MOSFET	5 A	5 A	8-WDFN (3x3)	Non-Inverting

Catalog

High Speed 5A Dual Low Side MOSFET driver

Key Features

• High current drive capability (+/- 5 A)

• TTL/CMOS compatible inputs, independent of supply voltage

• Enable function incorporated for each driver

• Pin compatible to the most popular existing industry standard dual MOSFET drivers

• Input voltage from 4.5V to 20V

• Both outputs can be paralleled for higher drive current

Description

The NCP81071 is a high speed dual low−side MOSFETs driver. It is capable of providing large peak currents into capacitive loads up to 5 A peak current at the Miller plateau region to help reduce the Miller effect during MOSFETs switching transition. The device provides enable functions to give users better control than existing solutions in various applications. This part is available in MSOP8−EP package, SOIC8 package, DFN8 2 mm x 2 mm package and WDFN8 3 mm x 3 mm package.
