176-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

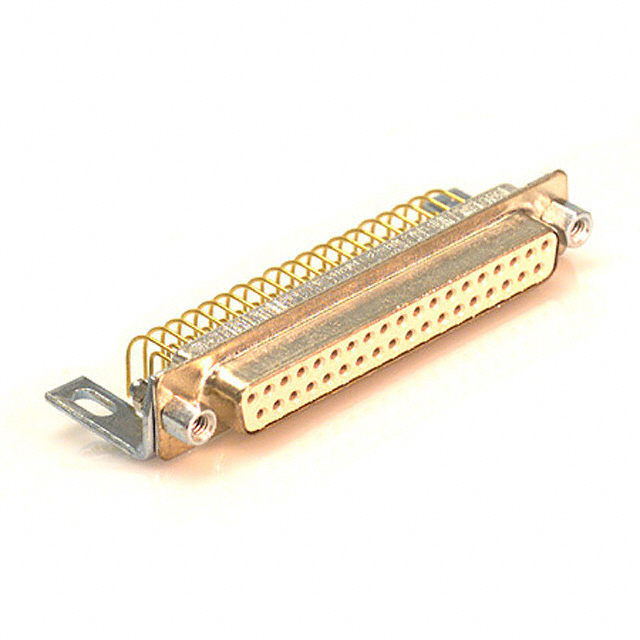

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Dielectric Material | Material Flammability Rating | Flange Feature | Backset Spacing | Backset Spacing | Number of Positions | Contact Type | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Features | Connector Style | Termination | Contact Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Brass | Beige | Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 4-40 Mating Side Female Screwlock | 13.84 mm | 0.545 in | 37 | Signal | Flash | Panel Mount Right Angle Through Hole | 2 | 4 | DC C | Receptacle Female Sockets | Mounting Brackets | D-Sub | Solder | Gold | 5 A |
