T540D Series
Manufacturer: KEMET
Beta
⌘K

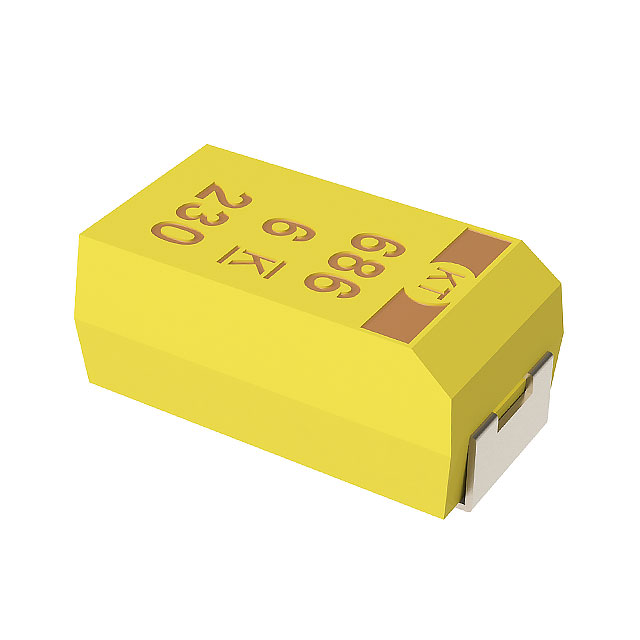

CAP TANT POLY 330UF 2.5V 2917
| Part | Mounting Type | Package / Case | Features | Operating Temperature [Min] | Operating Temperature [Max] | Type | Capacitance | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Rated | Lifetime @ Temp. | Tolerance | Manufacturer Size Code | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 330 µF | 40 mOhm | 0.122 in | 3.1 mm | 2.5 V | 2000 Hrs | 10 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS | |
Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 150 µF | 40 mOhm | 0.122 in | 3.1 mm | 6.3 VDC | 2000 Hrs | 20 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS | |
 KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 470 µF | 40 mOhm | 0.122 in | 3.1 mm | 2.5 V | 2000 Hrs | 20 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
 KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 15 µF | 100 mOhm | 0.122 in | 3.1 mm | 25 VDC | 2000 Hrs | 10 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 68 µF | 75 mOhm | 0.122 in | 3.1 mm | 16 V | 2000 Hrs | 20 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 330 µF | 40 mOhm | 0.122 in | 3.1 mm | 6.3 VDC | 2000 Hrs | 10 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS | |
Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 220 µF | 40 mOhm | 0.122 in | 3.1 mm | 6.3 VDC | 2000 Hrs | 10 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS | |
KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 330 µF | 40 mOhm | 0.122 in | 3.1 mm | 4 V | 2000 Hrs | 20 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 22 µF | 100 mOhm | 0.122 in | 3.1 mm | 25 VDC | 2000 Hrs | 20 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
KEMET | Surface Mount | 2917 (7343 Metric) | High Reliability | -55 C | 125 °C | Molded | 22 µF | 100 mOhm | 0.122 in | 3.1 mm | 20 V | 2000 Hrs | 10 % | D | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | COTS |
