10127816 Series
Manufacturer: Amphenol ICC (FCI)
Catalog
CONN PLUG HSG 24POS 4.20MM
| Part | Number of Rows | Mounting Type | Insulation Material | Row Spacing | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pitch [x] | Pitch [x] | Connector Type | Number of Positions | Features | Note | Color | Contact Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

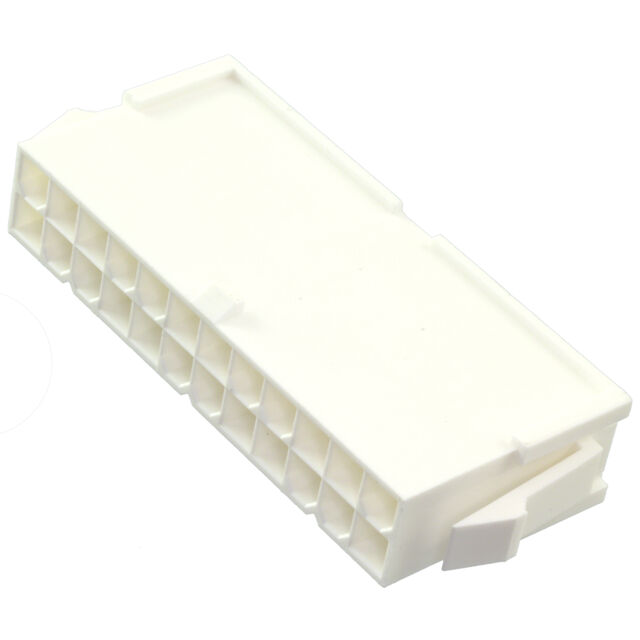

 Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 24 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |
Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 6 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |
Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 12 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |

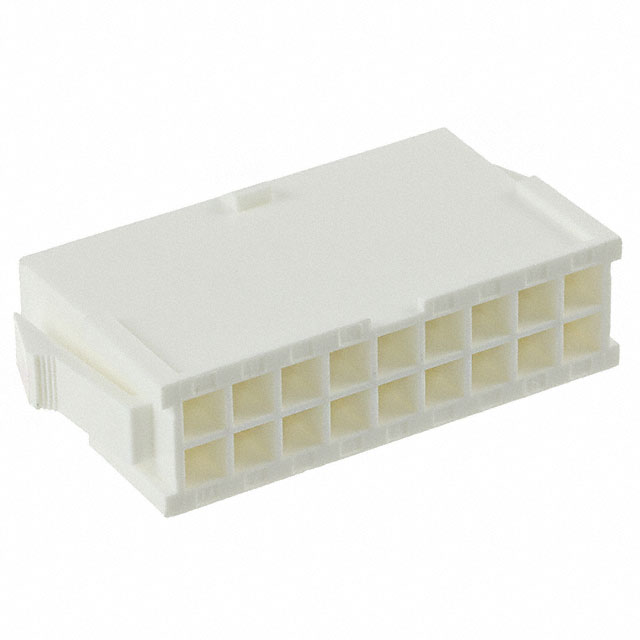

 Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 18 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |

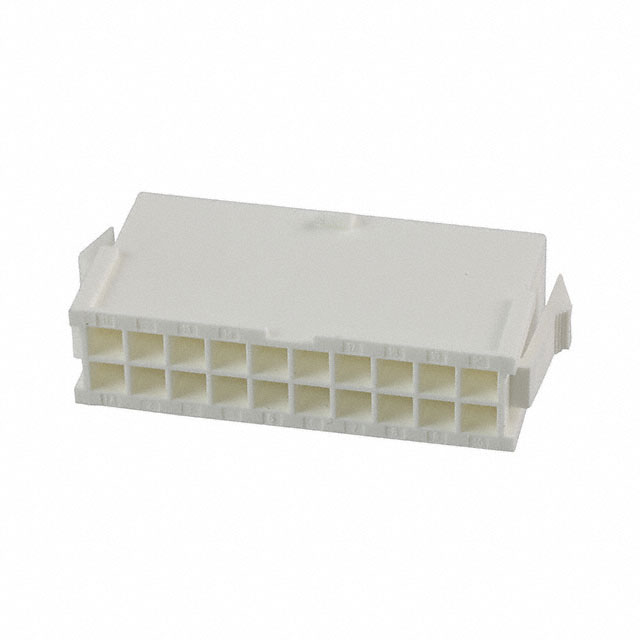

 Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 20 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |

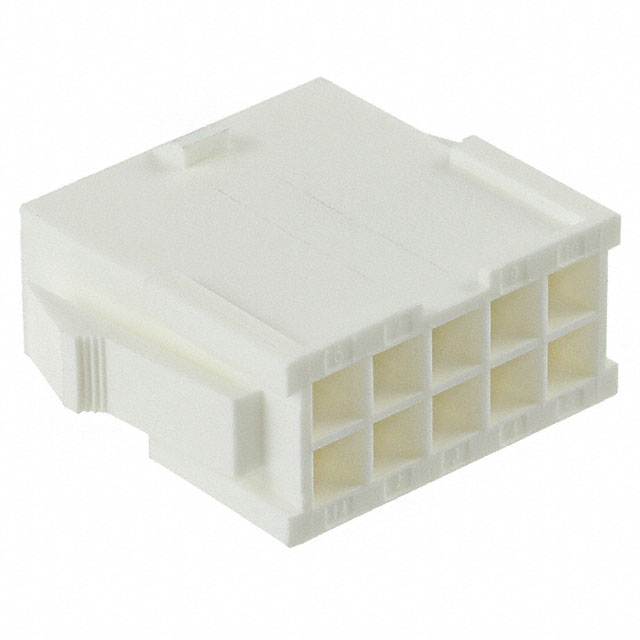

 Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 10 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |
 Amphenol ICC (FCI) | 2 | Panel Mount Snap-In | Polyamide (PA66) Nylon 6/6 | 4.2 mm | 0.165 in | -40 °C | 105 ░C | Male Pin | 4.2 mm | 0.165 in | Plug | 4 | Glow Wire Compliant | Contacts Not Included | Natural | Crimp | Locking Ramp |
