6170112 Series

Catalog

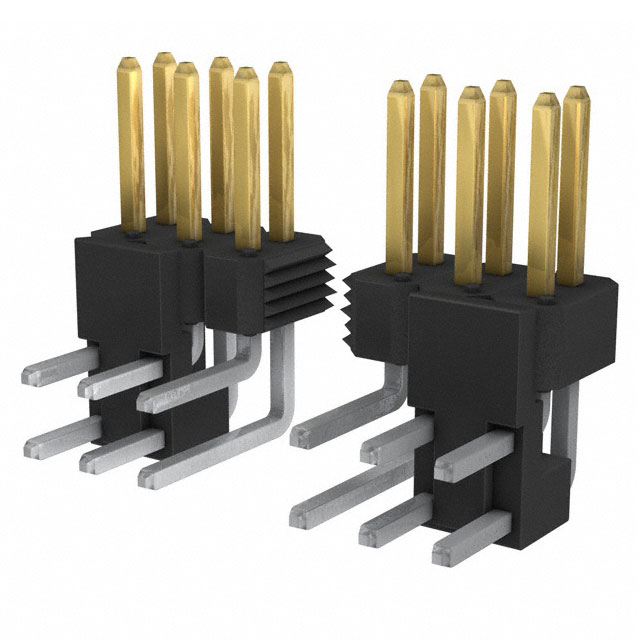

CONN HEADER R/A 24POS 2.54MM

Part	Insulation Color	Contact Finish - Mating	Number of Positions	Features	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Mounting Type	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Length - Mating	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions Loaded
Amphenol ICC (FCI) 6170112C185515LF	Black	Gold	24	Spacer	Male Pin	2.54 mm	0.1 in	Push-Pull	Through Hole Right Angle	Square	UL94 V-0	30 Áin	0.76 Ám	2	0.13 in	3.3 mm	Thermoplastic	6.1 mm	0.24 in	0.1 in	2.54 mm	Tin	Solder	Phosphor Bronze	Header	2 çm	78.7 çin	Unshrouded	All
