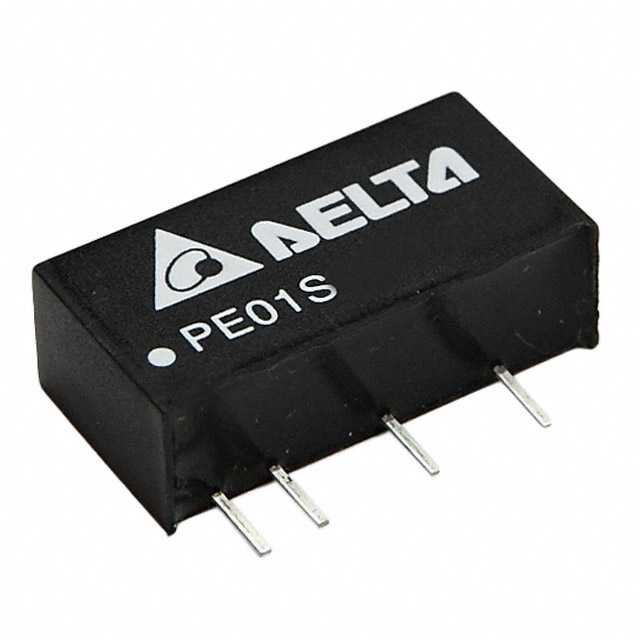

PE01S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 15V 1W
| Part | Package / Case | Type | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Efficiency | Features | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 6-SIP Module 4 Leads | Isolated Module | Through Hole | 67 mA | 13.2 V | 87.5 % | SCP | 1000 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 10.8 V | 1 | 85 °C | -40 C | Medical | 15 V |
Delta Electronics | 6-SIP Module 4 Leads | Isolated Module | Through Hole | 200 mA | 13.2 V | 84 % | SCP | 1000 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 10.8 V | 1 | 85 °C | -40 C | Medical | 5 V |
Delta Electronics | 6-SIP Module 4 Leads | Isolated Module | Through Hole | 110 mA | 26.4 V | 86.5 % | SCP | 1000 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 21.6 V | 1 | 85 °C | -40 C | Medical | 9 V |
Delta Electronics | 6-SIP Module 4 Leads | Isolated Module | Through Hole | 200 mA | 26.4 V | 84 % | SCP | 1000 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 21.6 V | 1 | 85 °C | -40 C | Medical | 5 V |
Delta Electronics | 6-SIP Module 4 Leads | Isolated Module | Through Hole | 200 mA | 5.5 V | 84 % | SCP | 1000 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 4.5 V | 1 | 85 °C | -40 C | Medical | 5 V |
