PCM1860 Series

103dB 2-Channel Hardware-Controlled Audio ADC With Universal Front End

Catalog

103dB 2-Channel Hardware-Controlled Audio ADC With Universal Front End

Part	Utilized IC / Part	Type	Contents	Function	Supplied Contents	Secondary Attributes	Primary Attributes	Resolution (Bits)	Supplier Device Package	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Voltage Supply Source	Sampling Rate (Per Second)	Number of Channels [custom]

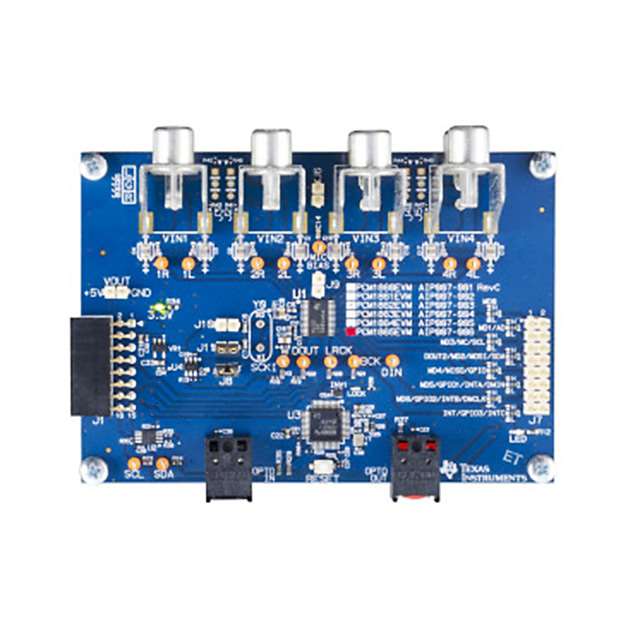

Texas Instruments PCM1860EVM	PCM1860	Audio	Board(s)	Audio Processing	Board(s)	On-Board LEDs	Audio Front End
Texas Instruments PCM1860DBTR		ADC Audio						24 b	30-TSSOP	I2S	125 °C	-40 °C	3.6 V	3 V	0.173 in	4.4 mm Width	30-TFSOP	Surface Mount	Analog and Digital	192k	2
Texas Instruments PCM1860DBT		ADC Audio						24 b	30-TSSOP	I2S	125 °C	-40 °C	3.6 V	3 V	0.173 in	4.4 mm Width	30-TFSOP	Surface Mount	Analog and Digital	192k	2

Catalog

103dB 2-Channel Hardware-Controlled Audio ADC With Universal Front End

Key Features

• High SNR Performance:110-dB SNR (PCM1861/63/65)103-dB SNR (PCM1860/62/64)ADC Sample Rate (fS) = 8 kHz to 192 kHzUp To Four Independent ADC Channels AvailableSingle-Ended, 2.1-VRMSFull-Scale (FS) InputDifferential, 4.2-VRMSFS InputHardware (HW) Control: PCM1860/61Software (SW) Control (I2C or SPI):PCM1862/63/64/65Support for Up To Four Digital Microphones(SW-Controlled Devices)Programmable Gain Amplifier (PGA):Fixed Gain: 0 dB, 12 dB, 32 dB(PCM1860/61)SW-Controlled Gain: –12 dB to +32 dB(PCM1862/63/64/65)Integrated High-Performance Audio PLLSingle 3.3-V Power-Supply OperationPower Dissipation at 3.3 V:< 85 mW (PCM1860/61/62/63)< 145 mW (PCM1864/65)EnergysenseAudio Content Detector for Auto System Wakeup and SleepMaster or Slave Audio InterfaceAutomatic PGA Clipping Suppression ControlPCB-Footprint Compatibility Across All DevicesHigh SNR Performance:110-dB SNR (PCM1861/63/65)103-dB SNR (PCM1860/62/64)ADC Sample Rate (fS) = 8 kHz to 192 kHzUp To Four Independent ADC Channels AvailableSingle-Ended, 2.1-VRMSFull-Scale (FS) InputDifferential, 4.2-VRMSFS InputHardware (HW) Control: PCM1860/61Software (SW) Control (I2C or SPI):PCM1862/63/64/65Support for Up To Four Digital Microphones(SW-Controlled Devices)Programmable Gain Amplifier (PGA):Fixed Gain: 0 dB, 12 dB, 32 dB(PCM1860/61)SW-Controlled Gain: –12 dB to +32 dB(PCM1862/63/64/65)Integrated High-Performance Audio PLLSingle 3.3-V Power-Supply OperationPower Dissipation at 3.3 V:< 85 mW (PCM1860/61/62/63)< 145 mW (PCM1864/65)EnergysenseAudio Content Detector for Auto System Wakeup and SleepMaster or Slave Audio InterfaceAutomatic PGA Clipping Suppression ControlPCB-Footprint Compatibility Across All Devices

Description

The PCM186x family (PCM1860, PCM1861, PCM1862, PCM1863, PCM1864, and PCM1865) of audio front-end devices take a new approach to audio-function integration to ease compliance with European Ecodesign legislation, while enabling high-performance end products at reduced cost. The PCM186x support single-supply operation at 3.3 V, and offer an integrated programable gain amplifier (PGA) in a small package; this configuration makes it feasible to implement smaller and smarter products at a reduced cost. The PCM186x audio front end supports single-ended input levels from small-mV microphone inputs to 2.1-VRMSline inputs, without external resistor dividers. The front-end mixer (MIX), multiplexer (MUX), and PGA also support differential (Diff), pseudo-differential, and single-ended (SE) inputs, making these devices an ideal interface for products that require interference suppression. The PCM186x integrate many system-level functions that assist or replace some DSP functions. An integrated band-gap voltage reference provides excellent PSRR, so that a dedicated analog 3.3-V rail may not be required. The PCM186x family (PCM1860, PCM1861, PCM1862, PCM1863, PCM1864, and PCM1865) of audio front-end devices take a new approach to audio-function integration to ease compliance with European Ecodesign legislation, while enabling high-performance end products at reduced cost. The PCM186x support single-supply operation at 3.3 V, and offer an integrated programable gain amplifier (PGA) in a small package; this configuration makes it feasible to implement smaller and smarter products at a reduced cost. The PCM186x audio front end supports single-ended input levels from small-mV microphone inputs to 2.1-VRMSline inputs, without external resistor dividers. The front-end mixer (MIX), multiplexer (MUX), and PGA also support differential (Diff), pseudo-differential, and single-ended (SE) inputs, making these devices an ideal interface for products that require interference suppression. The PCM186x integrate many system-level functions that assist or replace some DSP functions. An integrated band-gap voltage reference provides excellent PSRR, so that a dedicated analog 3.3-V rail may not be required.
