AWG28-10 Series

Catalog

CBL RIBN 10COND 0.039 GRY FEET

Part	Spool Size [x]	Spool Size [x]	Conductor Material	First Conductor Mark	Length	Insulation Resistance	Jacket (Insulation) Material	Shielding	Ratings	Voltage	Pitch	Pitch	Ribbon Width [custom]	Ribbon Width [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Number of Conductors [custom]	Wire Gauge	Jacket Color	Ribbon Thickness	Ribbon Thickness	Cable Type	Length [x]	Length [x]	Operating Temperature

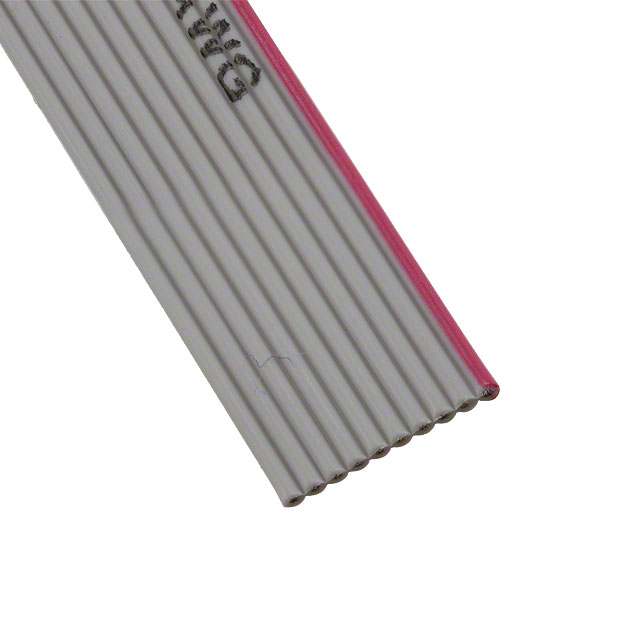

Assmann WSW Components AWG28-10/G-1/300	300 ft	91.44 m	Copper Tinned	Red	Enter Number of Feet in Order Quantity	100 MOhms	Poly-Vinyl Chloride (PVC)	Unshielded	UL Style 2651	300 VDC	1 mm	0.039 in	0.394 in	10 mm	36 AWG	7 Strands	-10 °C	105 ░C	91440 mm	3600 in	10	28 AWG	Gray	0.89 mm	0.035 in	Flat Cable
Assmann WSW Components AWG28-10/G/300	300 ft	91.44 m	Copper Tinned	Red	Enter Number of Feet in Order Quantity	100 MOhms	Poly-Vinyl Chloride (PVC)	Unshielded	UL Style 2651	300 VDC	1.27 mm	0.05 in	0.5 in	12.7 mm	36 AWG	7 Strands	-10 °C	105 ░C	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	10	28 AWG	Gray	0.89 mm	0.035 in	Flat Cable	50 ft	15.24 m

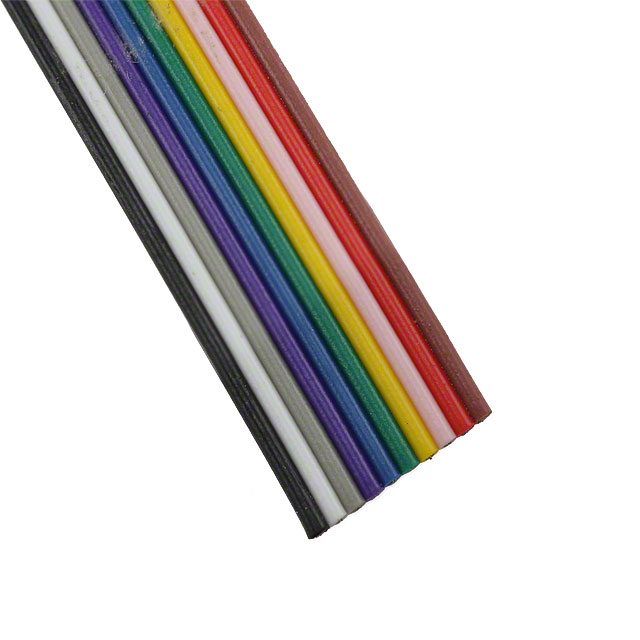

Assmann WSW Components AWG28-10/F-1/300	300 ft	91.44 m	Copper Tinned		Enter Number of Feet in Order Quantity	100 MOhms	Poly-Vinyl Chloride (PVC)	Unshielded	UL Style 2651	300 VDC	1 mm	0.039 in	0.394 in	10 mm	36 AWG	7 Strands	-10 °C	105 ░C	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	10	28 AWG	Multiple	0.89 mm	0.035 in	Flat Cable	50 ft	15.24 m

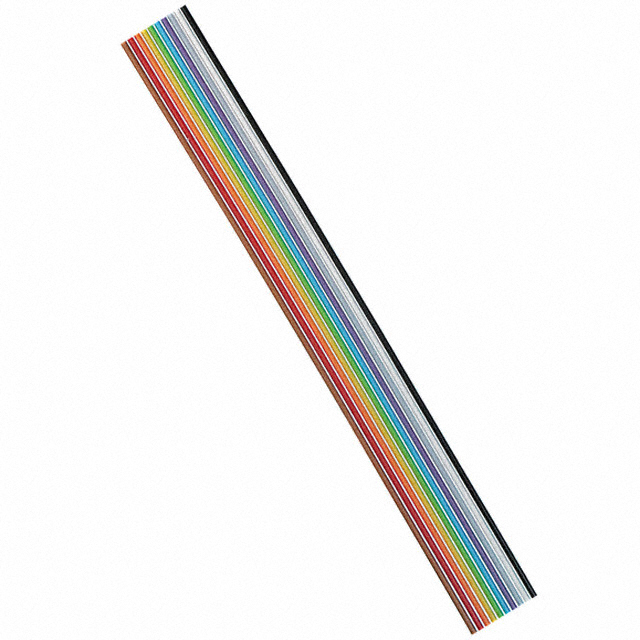

Assmann WSW Components AWG28-10/F/300			Copper Tinned	Red		100 MOhms	Poly-Vinyl Chloride (PVC)	Unshielded	UL Style 2651	300 VDC	1.27 mm	0.05 in	0.5 in	12.7 mm	36 AWG	7 Strands			3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	10	28 AWG	Multiple	0.89 mm	0.035 in	Flat Cable	50 ft	15.24 m	105 C
