1744525 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

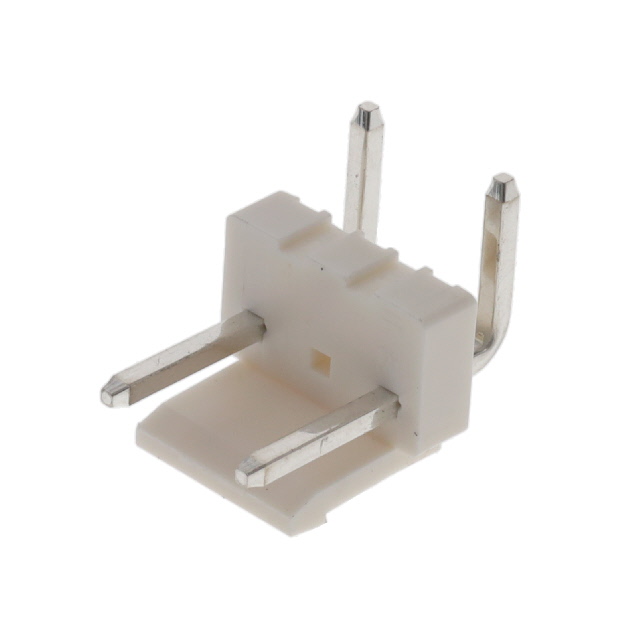

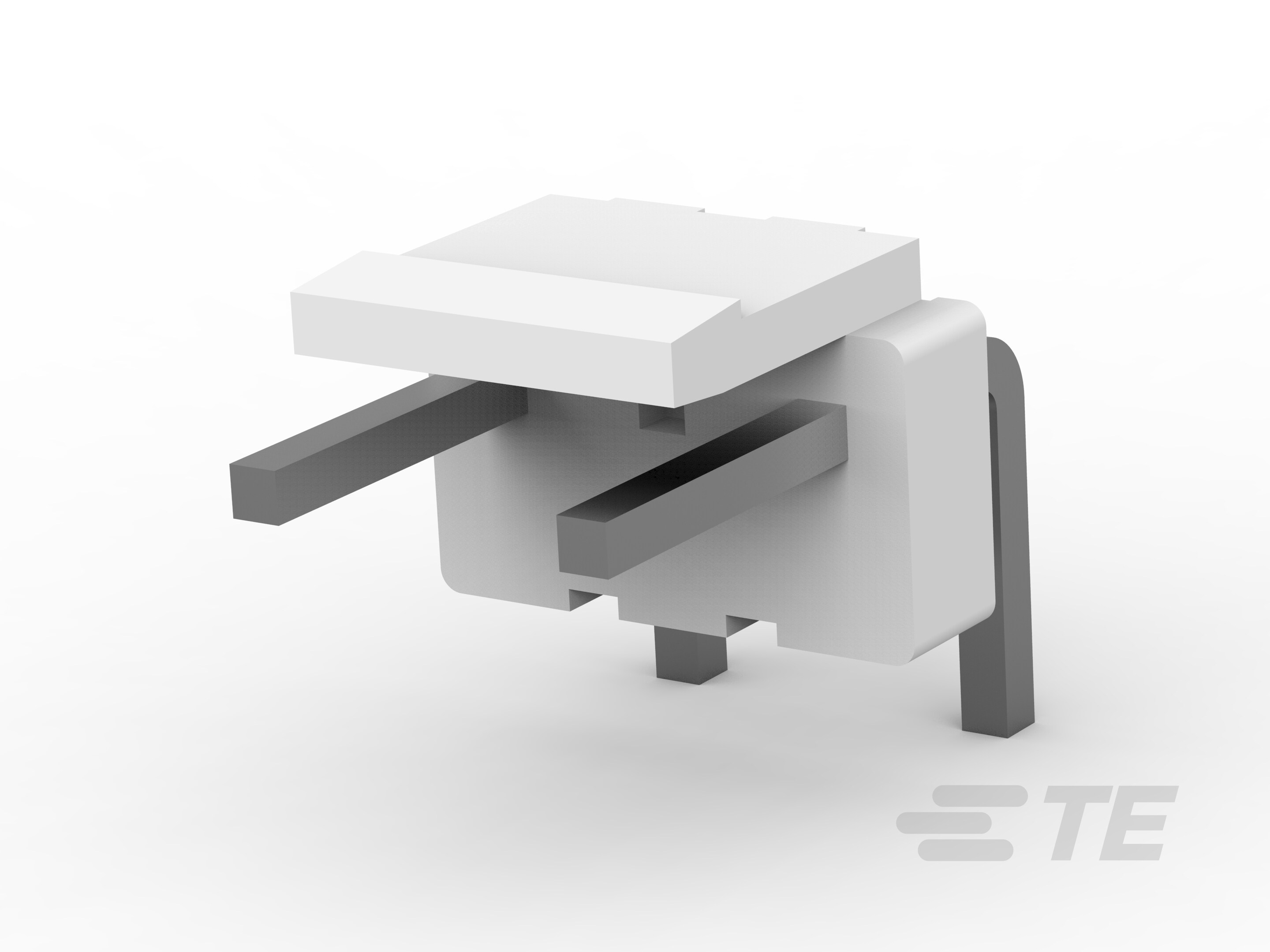

CONN HEADER R/A 3POS 3.96MM
| Part | Insulation Material | Number of Positions Loaded | Connector Type | Contact Material | Material Flammability Rating | Contact Shape | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Type | Contact Length - Post | Contact Length - Post | Termination | Contact Length - Mating | Contact Length - Mating [x] | Number of Rows | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Post | Style | Insulation Color | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 2 | Header | Brass | UL94 V-0 | Square | Locking Ramp | 0.156 in | 3.96 mm | Male Pin | 3.6 mm | 0.142 in | Solder | 8.6 mm | 0.339 " | 1 | Through Hole Right Angle | 8.2 mm | 0.323 in | Tin | Board to Cable/Wire | Natural | Shrouded - 1 Wall | 2.03 µm | 80 µin | 2.03 µm | 80 µin |
