KWDSLP31 Series

Catalog

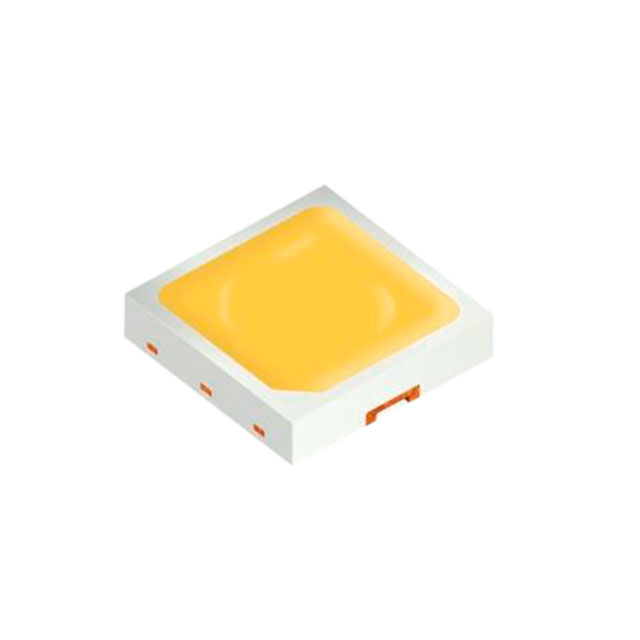

LED WARM WHITE DIFFUSED 1212 SMD

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Size	Mounting Type	Package / Case	Package / Case	Lens Transparency	Supplier Device Package	Qualification	Color	Viewing Angle	Grade	Lens Color
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4U9X-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Warm White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-GXHX-4H8I-Z444-60-R18	2.9 V	60 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Cool White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4C8E-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Cool White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-GXHX-4R9T-Z444-60-R18	2.9 V	60 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Warm White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4F8G-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Cool White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-GXHX-4O9Q-Z444-60-R18	2.9 V	60 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Warm White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4R9T-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Warm White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-GXHX-4J8K-Z444-60-R18	2.9 V	60 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Neutral White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4J8K-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Neutral White	120 °	Automotive	Yellow
ams-OSRAM USA INC. KW DSLP31.CC-JXJZ-4L8N-46A6-140-R18	2.9 V 3.2 V	60 mA 140 mA	3 mm	3 mm	Oval with Flat Top	2.6 mm	Surface Mount	3030 Metric	1212	Diffused	1212	AEC-Q102	Neutral White	120 °	Automotive	Yellow
