P110K Series
Manufacturer: TT Electronics/BI
Beta
⌘K
POT 50K OHM 1/20W PLASTIC LINEAR
| Part | Size - Body [y] | Size - Body [x] | Size - Body [x] | Size - Body [y] | Adjustment Type | Number of Turns | Rotation | Termination Style | Bushing Thread | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Gangs | Mounting Type | Resistance (Ohms) [custom] | Tolerance | Power (Watts) | Power (Watts) | Actuator Type | Built in Switch | Actuator Length [x] | Actuator Length [x] | Taper | Resistive Material | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Side Adjustment | 1 | 300 ░ | Board Locks PC Pins | M9 x 0.75 | 6 mm | 0.236 in | 1 | Panel Mount | 50 kOhms | 20 % | 0.05 W | 50 mW | Knurled | None | 15 mm | 0.591 in | Linear | Conductive Plastic | ||
 TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | 6 mm | 0.236 in | 1 | Through Hole | 500 Ohms | 20 % | 0.05 W | 50 mW | Flatted | Detent | 20 mm | 0.787 in | Logarithmic | Conductive Plastic | |||

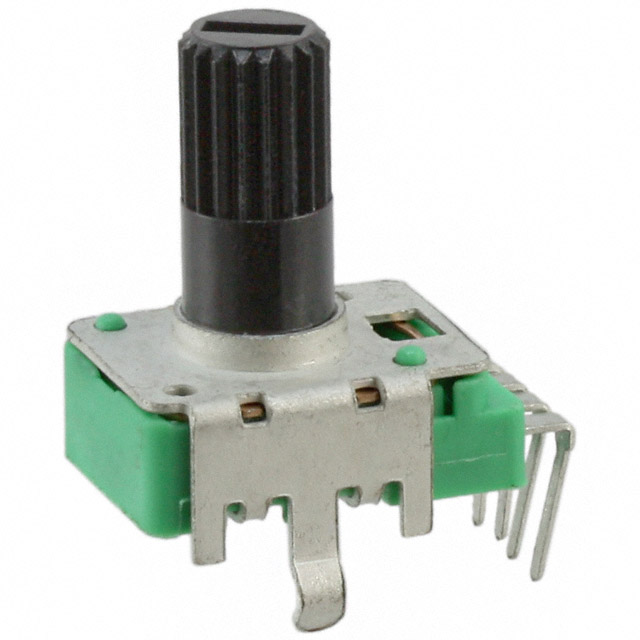

 TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | 6 mm | 0.236 in | 1 | Through Hole | 20 % | 0.05 W | 50 mW | Knurled | None | 20 mm | 0.787 in | Linear | Conductive Plastic | 10k | |||

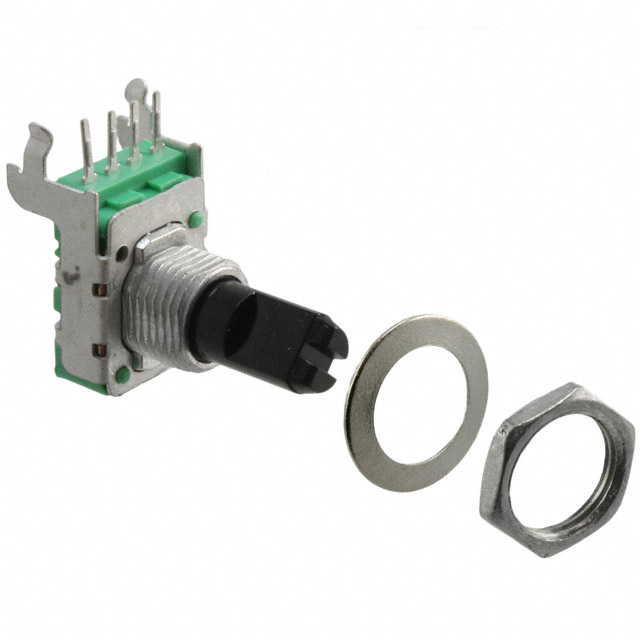

 TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Side Adjustment | 1 | 300 ░ | Board Locks PC Pins | M9 x 0.75 | 6 mm | 0.236 in | 1 | Panel Mount | 20 % | 0.05 W | 50 mW | Flatted | Detent | 15 mm | 0.591 in | Linear | Conductive Plastic | 100k | ||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Side Adjustment | 1 | 300 ░ | Board Locks PC Pins | M9 x 0.75 | 6 mm | 0.236 in | 1 | Panel Mount | 20 % | 0.05 W | 50 mW | Flatted | None | 25 mm | 0.984 in | Logarithmic | Conductive Plastic | 1k | ||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | 6 mm | 0.236 in | 1 | Through Hole | 20 % | 0.05 W | 50 mW | Flatted | None | 25 mm | 0.984 in | Linear | Conductive Plastic | 20 kOhms | |||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | 6 mm | 0.236 in | 1 | Through Hole | 20 % | 0.05 W | 50 mW | Flatted | Detent | 20 mm | 0.787 in | Logarithmic | Conductive Plastic | 500 kOhms | |||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Side Adjustment | 1 | 300 ░ | Board Locks PC Pins | 6 mm | 0.236 in | 1 | Through Hole | 20 % | 0.05 W | 50 mW | Knurled | None | 15 mm | 0.591 in | Linear | Conductive Plastic | 10k | |||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | M9 x 0.75 | 6 mm | 0.236 in | 1 | Panel Mount | 20 % | 0.05 W | 50 mW | Flatted | Detent | 15 mm | 0.591 in | Linear | Conductive Plastic | 1k | ||
TT Electronics/BI | 0.472 " | 0.626 " | 15.9 mm | 12 mm | Top Adjustment | 1 | 300 ░ | Board Locks PC Pins | M9 x 0.75 | 6 mm | 0.236 in | 1 | Panel Mount | 20 % | 0.05 W | 50 mW | Flatted | Detent | 15 mm | 0.591 in | Linear | Conductive Plastic | 10k |
