1003-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

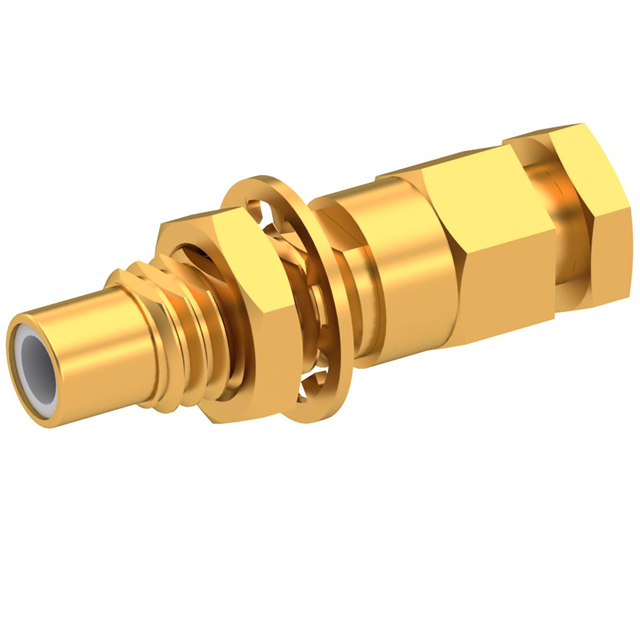

SMC / STRAIGHT JACK MALE CLAMP T
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Dielectric Material | Insertion Loss | Body Material | Center Contact Plating | Body Finish | Number of Ports | Impedance | Housing Color | Contact Termination | Mounting Feature | Mounting Type | Connector Style | Frequency - Max [Max] | Shield Termination | Connector Type | Fastening Type | Center Contact Material | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | 500 | Polytetrafluoroethylene (PTFE) | 0.25 dB | Brass | Gold | Gold | 1 | 50 Ohms | Gold | Solder | Bulkhead - Front Side Nut | Panel Mount | SMC | 10 GHz | Clamp | Jack Male Pin | Threaded | Brass | 196 | RG-178 |
