smr-5000 Series
Manufacturer: Knitter-Switch
Beta
⌘K

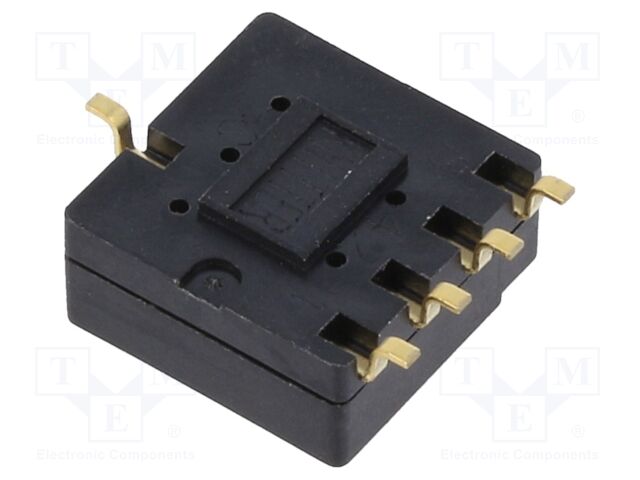

ENCODING SWITCH; POS: 16; SMD; 100MΩ; DC LOAD @R: 0.03A/15VDC
| Part | Voltage Rating | Actuator Level | Washable | Contact Finish | Mounting Type | Number of Positions | Current Rating (Amps) | Circuit | Termination Style | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Contact Material | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knitter-Switch | 15 VDC | Flush Recessed | Gold | Surface Mount | 16 | 30 mA | Hexadecimal Complement | Gull Wing | 2.54 mm | 0.1 " | 85 °C | -40 C | 4.7 mm | 0.185 in | Phosphor Bronze | Rotary for Tool |
