78424 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

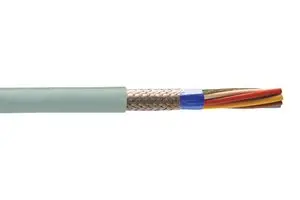

MULTICONDUCTOR CABLE, ECOCABLE® MINI, SHIELDED, 20 CONDUCTOR, 22 AWG, 0.382 MM², 1000 FT, 305 M
| Part | Shield Material | Shield Coverage | Voltage | Jacket (Insulation) Material | Cable Type | Wire Gauge | Conductor Insulation | Jacket Color | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Ratings | Conductor Material | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 300 VDC | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 22 AWG | Polyphenylene Ether Modified (mPPE) | Slate | 20 | 34 AWG | 19 | 304.8 m | 1000 ft | 0.306 in | 7.77 mm | 0.381 mm | 0.015 in | 80 °C | -40 C | Braid Foil | ISO 10993 UL Style 21460 | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | ||
ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 300 VDC | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 22 AWG | Polyphenylene Ether Modified (mPPE) | Slate | 20 | 34 AWG | 19 | 0.306 in | 7.77 mm | 0.381 mm | 0.015 in | 80 °C | -40 C | Braid Foil | ISO 10993 UL Style 21460 | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 100 ft | 30.5 m |
