0722-0 Series

Catalog

CONN PIN RCPT .025-.037 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Square Pin Size	Accepts Square Pin Size	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Length - Overall	Length - Overall	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

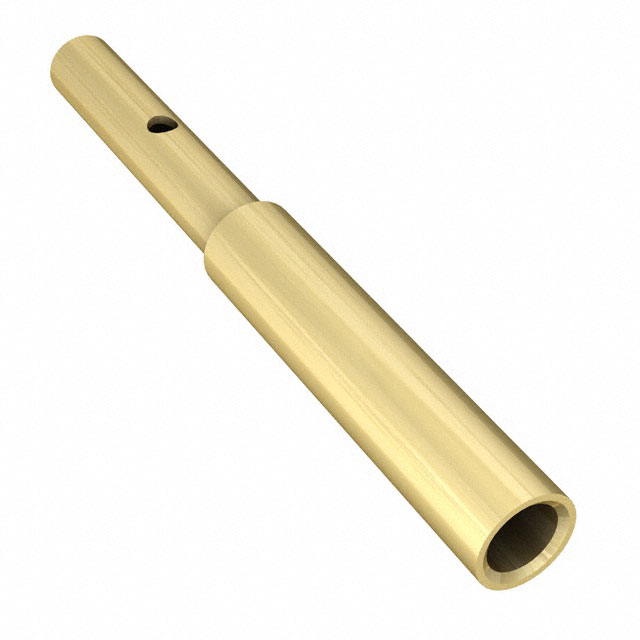

Mill-Max Manufacturing Corp. 0722-0-33-15-47-27-10-0	-55 C	125 °C	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	Crimp	30 Áin	0.76 Ám	Gold	Beryllium Copper	13.16 mm	0.518 in	0.2 in	5.08 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0722-0-33-21-47-35-10-0	-55 C	125 °C	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	Crimp	30 Áin	0.76 Ám	Gold	Beryllium Copper	13.16 mm	0.518 in	0.2 in	5.08 mm	0.051 in	1.3 mm
