087381 Series

Manufacturer: Molex

Catalog

Catalog

CONN RCPT 42POS 0.079 GOLD SMD

...

Part	Mounting Type	Contact Finish - Mating	Number of Positions	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Features	Voltage Rating	Current Rating (Amps)	Connector Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Type	Fastening Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [custom]	Insulation Height [custom]	Number of Positions
Molex 0873814294	Surface Mount	Gold	42	Square	0.079 in	2 mm	All	Board Guide	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C
Molex 0873810884	Surface Mount	Gold	8	Square	0.079 in	2 mm	All	Board Guide Pick and Place	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C
Molex 0873812694	Surface Mount	Gold	26	Square	0.079 in	2 mm	All	Board Guide	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C
Molex 0873814018	Surface Mount	Gold	40	Square	0.079 in	2 mm	All	Board Guide	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications			1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C	0.157 in	4 mm
Molex 0873812218	Surface Mount	Gold	22 positions	Square	0.079 in	2 mm	All	Board Guide	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications			1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C	0.157 in	4 mm
Molex 0873811274	Surface Mount	Gold	12	Square	0.079 in	2 mm	All	Pick and Place	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C
Molex 0873811084	Surface Mount	Gold	10	Square	0.079 in	2 mm	All	Board Guide Pick and Place	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C

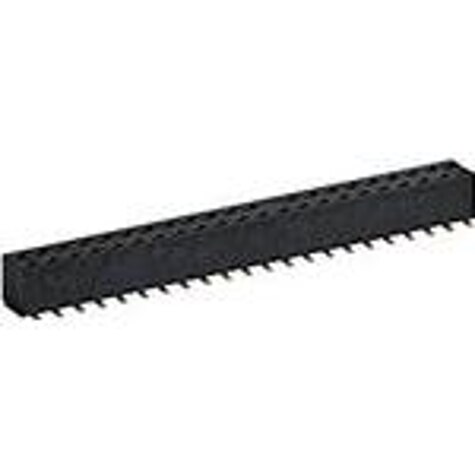

Molex 0873811817	Surface Mount	Gold	18	Square	0.079 in	2 mm	All	Board Guide	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	30 Áin	0.76 Ám	Automotive General Purpose Telecommunications			1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C	0.157 in	4 mm
Molex 0873811674	Surface Mount	Gold		Square	0.079 in	2 mm	All	Pick and Place	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C			16
Molex 0873815064	Surface Mount	Gold	50	Square	0.079 in	2 mm	All	Pick and Place	125 VDC	1.9 A	Receptacle	Tin	0.079 in	2 mm	2	15 µin	0.38 µm	Automotive General Purpose Telecommunications	0.177 in	4.5 mm	1.27 µm	50 µin	Black	Female Socket	Push-Pull	Solder	105 ░C	-55 °C
