ERG-2 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

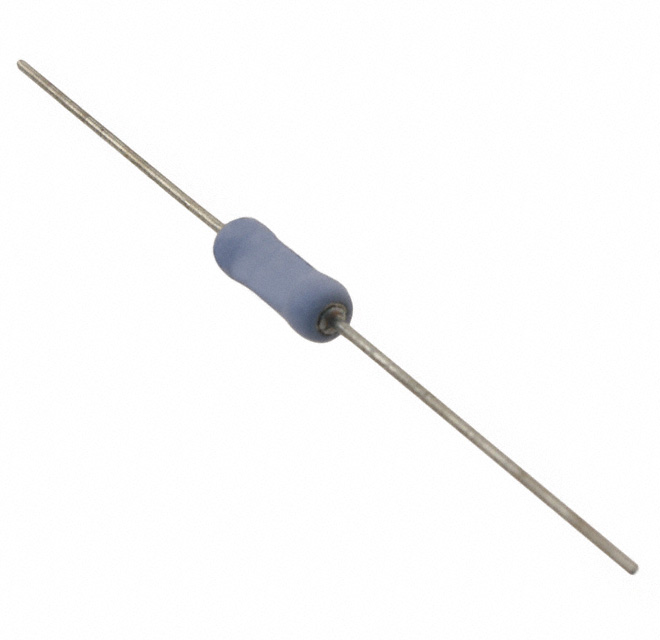

RES 12 OHM 5% 2W AXIAL
| Part | Tolerance | Resistance | Composition | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Power (Watts) | Features | Supplier Device Package | Number of Terminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 5 % | 12 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 160 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 120 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 62 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 18 kOhms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 11 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 22 kOhms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 51 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 1500 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
Panasonic Industrial Automation Sales | 5 % | 100 Ohms | Metal Oxide Film | Axial | 4 mm | 0.157 in | 0.472 in | 12 mm | -55 °C | 235 °C | 350 ppm/°C | 2 W | Flame Proof Safety | Axial | 2 |
