MAX38801 Series

Catalog

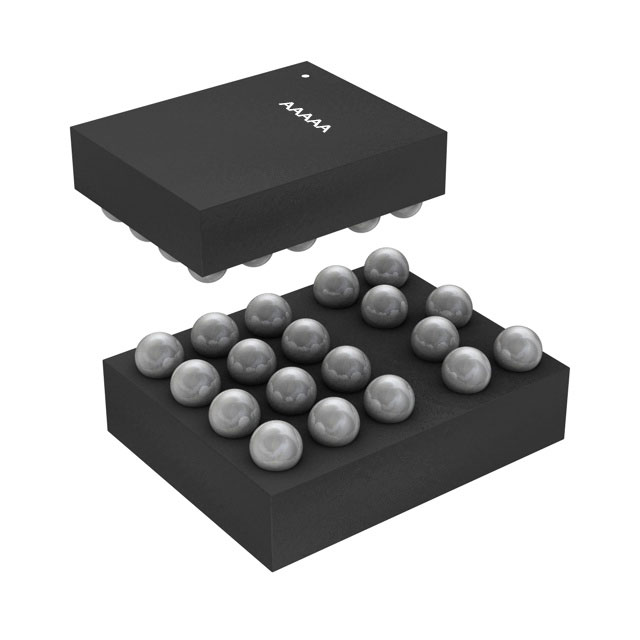

IC REG BUCK ADJ 15A 19WLCSP

Part	Voltage - Output (Max) [Max]	Output Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Mounting Type	Frequency - Switching	Voltage - Output (Min/Fixed)	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Function	Voltage - Input (Min) [Min]	Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Voltage - Output [Max]	Voltage - Output [Min]	Supplied Contents	Main Purpose
Analog Devices Inc./Maxim Integrated MAX38801HCS+	5.5 V	Adjustable	Positive	0 °C	125 ¯C	15 A	Surface Mount	900 kHz	0.6 V	1	19-VFBGA WLCSP	14 V	19-WLCSP	2.78	2.2	Step-Down	6.5 V	Buck
Analog Devices Inc./Maxim Integrated MAX38801HCS+T	5.5 V	Adjustable	Positive	0 °C	125 ¯C	15 A	Surface Mount	900 kHz	0.6 V	1	19-VFBGA WLCSP	14 V	19-WLCSP	2.78	2.2	Step-Down	6.5 V	Buck

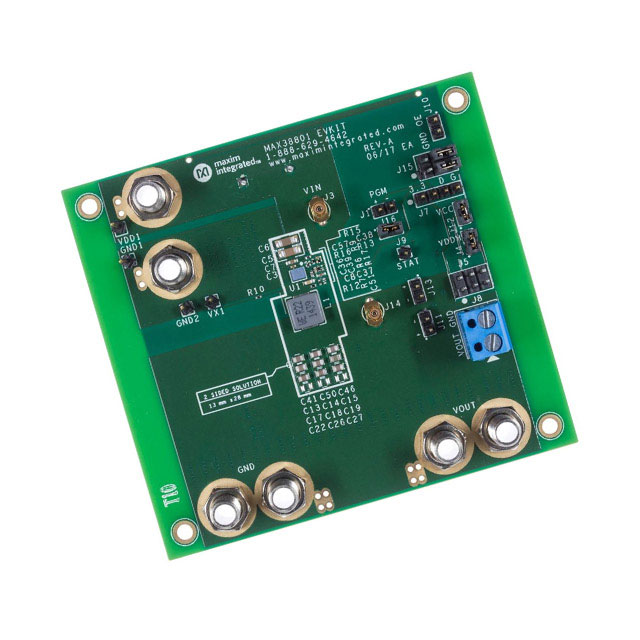

Analog Devices Inc./Maxim Integrated MAX38801EVKIT#						15 A													Non-Isolated	1	MAX38801	14 V	6.5 V	Fully Populated	5.5 V	0.6 V	Board(s)	DC/DC Step Down
