SWU0.75 Series
Manufacturer: Polytron
Beta
⌘K

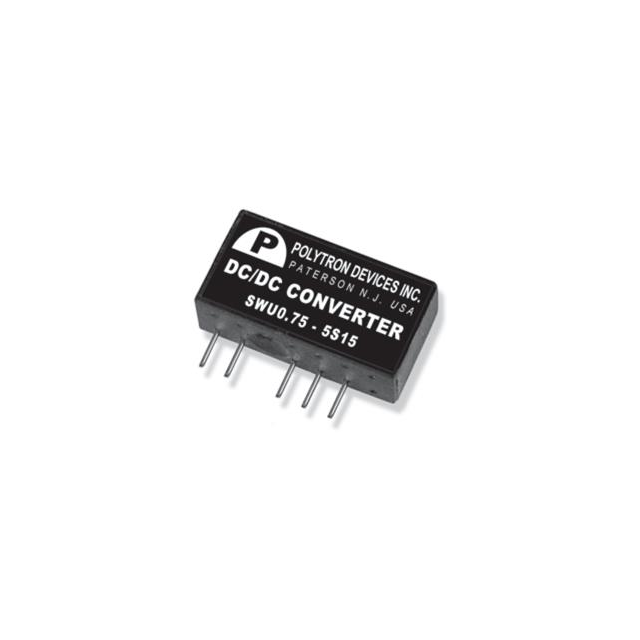

DC DC CONVERTER +/-15V 750MW
| Part | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Voltage - Input (Min) [Min] | Current - Output (Max) | Voltage - Isolation | Voltage - Input (Max) [Max] | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Applications | Type | Mounting Type | Voltage - Output 1 | Number of Outputs | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Polytron | 0.75 W | 71 °C | -25 °C | -15 V | 13.5 V | 25 mA | 750 V | 16.5 V | 80 % | 0.4 " | 10.2 mm | 6.1 mm | 19.6 mm | 0.24 " | 0.77 in | ITE (Commercial) | Isolated Module | Through Hole | 15 V | 2 | 7-SIP Module 5 Leads |
