34144 Series

Catalog

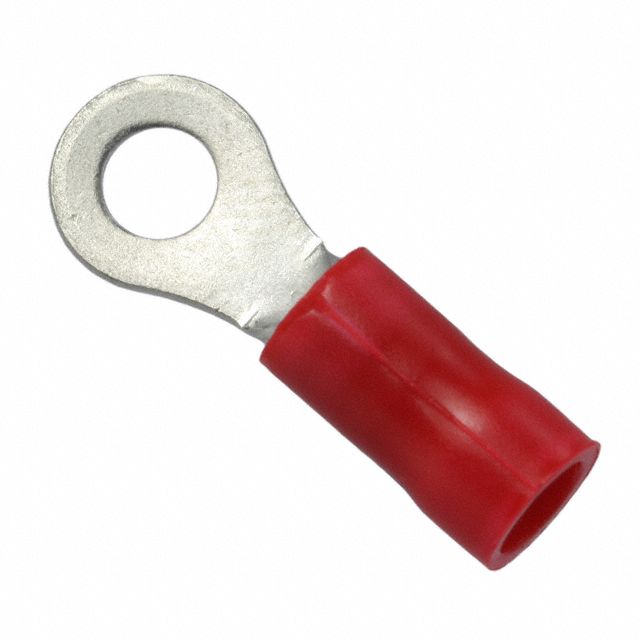

CONN RING CIRC 16-22AWG #6 CRIMP

Part	Thickness	Thickness	Color	Features	Contact Material	Length - Overall [x]	Length - Overall [x]	Mounting Type	Terminal Type	Insulation	Material - Insulation	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Stud/Tab Size
TE Connectivity Raychem Cable Protection 8-34144-1	0.031 in	0.79 mm	Red	Serrated Termination	Copper	0.809 in	20.55 mm	Free Hanging (In-Line)	Circular	Insulated	Poly-Vinyl Chloride (PVC)	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	7.14 mm	0.281 in	22 AWG	16 AWG	Crimp	6 Stud
TE Connectivity Raychem Cable Protection 2-34144-1	0.031 in	0.79 mm	Red	Serrated Termination	Copper	0.809 in	20.55 mm	Free Hanging (In-Line)	Circular	Insulated	Poly-Vinyl Chloride (PVC)	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	7.14 mm	0.281 in	22 AWG	16 AWG	Crimp	6 Stud
