RFAABNC Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, BNC, JACK, SMA, PLUG, STRAIGHT ADAPTER, 50 OHM
| Part | Center Contact Material | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Conversion Type | Style | Convert From (Adapter End) | Fastening Type | Fastening Type | Convert To (Adapter End) | Adapter Type | Adapter Series | Mounting Type | Frequency - Max [Max] | Impedance | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

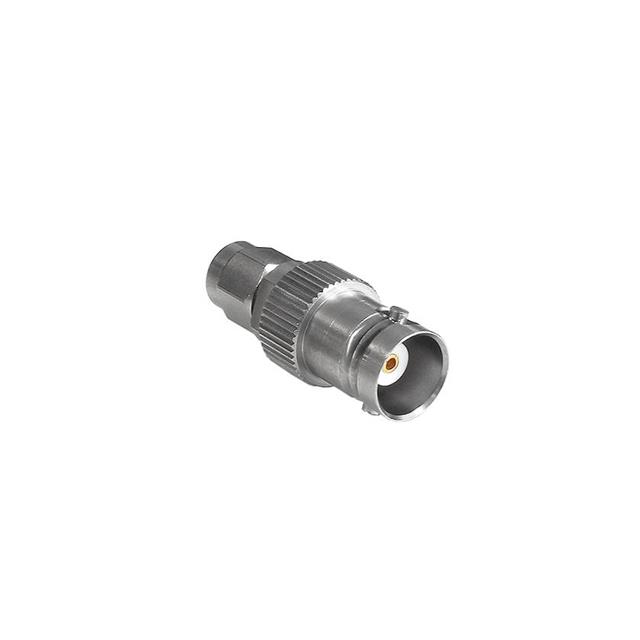

 BULGIN LIMITED | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Between Series | Straight | BNC Jack Female Socket | Threaded | Bayonet Lock | SMA Plug Male Pin | Plug to Jack | BNC to SMA | Free Hanging (In-Line) | 8 GHz | 50 Ohms | |
 BULGIN LIMITED | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Between Series | Straight | BNC Plug Male Pin | Threaded | Bayonet Lock | SMA Plug Male Pin | Plug to Plug | BNC to SMA | Free Hanging (In-Line) | 8 GHz | 50 Ohms | Male to Male |

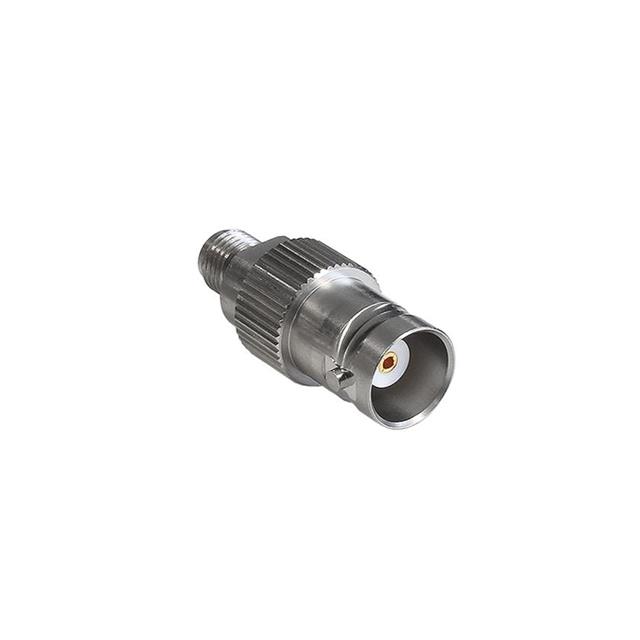

 BULGIN LIMITED | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Between Series | Straight | BNC Jack Female Socket | Threaded | Bayonet Lock | SMA Jack Female Socket | Jack to Jack | BNC to SMA | Free Hanging (In-Line) | 8 GHz | 50 Ohms | Female to Female |
