746-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 47POS 0.125

Part	Material - Insulation	Termination Rows	Termination	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Gender	Number of Positions/Bay/Row	Card Type	Number of Positions	Contact Type	Number of Rows	Mounting Type
EDAC Inc. 746-047-540-101	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-553-506	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole

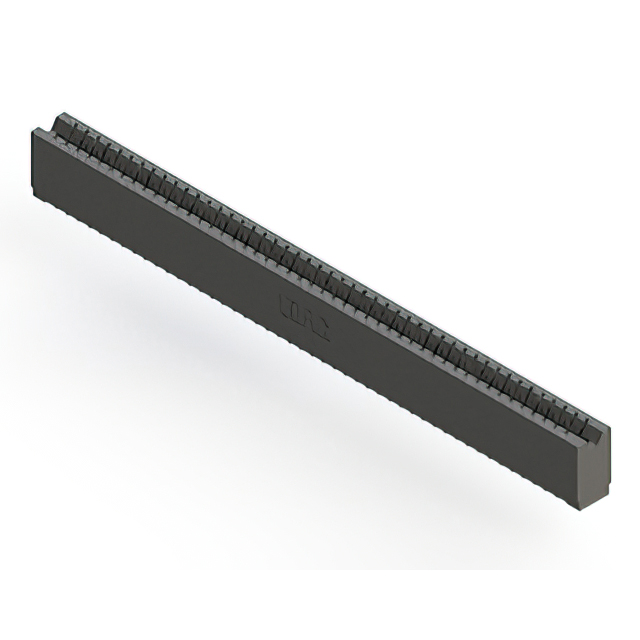

EDAC Inc. 746-047-520-106	Polyester Thermoplastic	1	Press-Fit	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-541-501	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-553-501	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-541-106	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-527-506	Polyester Thermoplastic	1	Press-Fit	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-545-106	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-545-101	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
EDAC Inc. 746-047-553-106	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	47	Non Specified - Single Edge	47	Cantilever	1	Through Hole
