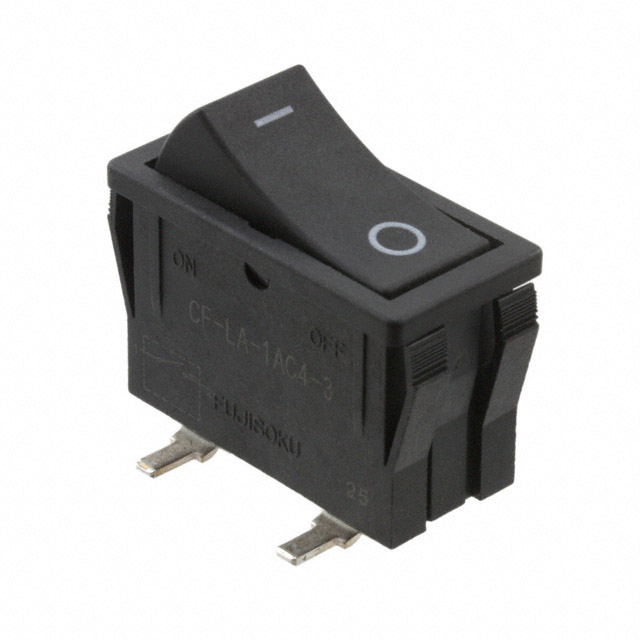

CF-LA-1 Series
Manufacturer: Nidec Components Corporation
Catalog
SWITCH ROCKER SPST 16A 125V
| Part | Actuator Marking | Actuator Type | Mounting Type | Approval Agency | Electrical Life | Current Rating (Amps) | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Features | Color - Actuator/Cap | Termination Style | Voltage Rating - AC | Ingress Protection | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nidec Components Corporation | O - | Concave (Curved) | Panel Mount Snap-In | cULus UL | 20000 Steps | 16 A | SPST | 12.9 mm | 28.2 mm | 160 A | Black | Quick Connect - 0.250" (6.3mm) | 125 V | IP40 | On-Off | -25 °C | 85 °C |
Nidec Components Corporation | Dot | Concave (Curved) | Panel Mount Snap-In | cULus UL | 20000 Steps | 16 A | SPST | 12.9 mm | 28.2 mm | 160 A | Black | Solder Lug | 125 V | IP40 | On-Off | -25 °C | 85 °C |
Nidec Components Corporation | O I | Concave (Curved) | Panel Mount Snap-In | cULus UL | 20000 Steps | 16 A | SPST | 12.9 mm | 28.2 mm | 160 A | Black | Quick Connect - 0.250" (6.3mm) | 125 V | IP40 | On-Off | -25 °C | 85 °C |
 Nidec Components Corporation | O I | Concave (Curved) | Panel Mount Right Angle Snap-In | cULus UL | 20000 Steps | 16 A | SPST | 12.9 mm | 28.2 mm | 160 A | Black | PC Pin | 125 V | IP40 | On-Off | -25 °C | 85 °C |
Nidec Components Corporation | No Marking | Concave (Curved) | Panel Mount Snap-In | cULus UL | 20000 Steps | 16 A | SPST | 12.9 mm | 28.2 mm | 160 A | Black | Quick Connect - 0.250" (6.3mm) | 125 V | IP40 | On-Off | -25 °C | 85 °C |
