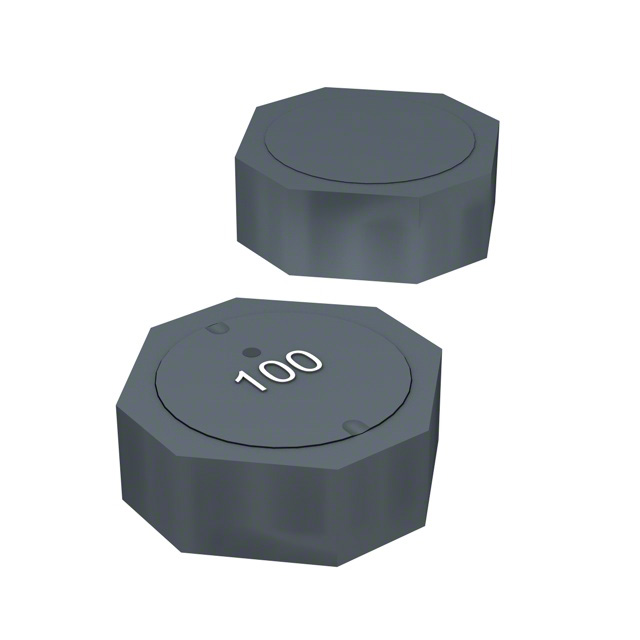

SRU8043 Series

Catalog

POWER INDUCTOR, 15UH, SHIELDED, 2.7A ROHS COMPLIANT: YES

Part	Material - Core	Inductance Frequency - Test	Type	Q @ Freq	Current - Saturation (Isat)	Frequency - Self Resonant	Shielding	Current Rating (Amps)	DC Resistance (DCR)	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Inductance
Bourns Inc. SRU8043-150Y	Ferrite	100 kHz	Drum Core Wirewound	2.52 MHz 26	2 A	15 MHz	Shielded	2.7 A	46 mOhm	Surface Mount	Nonstandard	125 °C	-40 C	8 mm	0.315 in	8 mm	0.315 in	4.6 mm	0.181 in	30 %	15 µH
Bourns Inc. SRU8043-120Y	Ferrite	100 kHz	Drum Core Wirewound	2.52 MHz 15	2.2 A	15 MHz	Shielded	2.8 A	39 mOhm	Surface Mount	Nonstandard	125 °C	-40 C	8 mm	0.315 in	8 mm	0.315 in	4.6 mm	0.181 in	30 %	12 µH
Bourns Inc. SRU8043-680Y	Ferrite	100 kHz	Drum Core Wirewound	2.52 MHz 20	1 A	7 MHz	Shielded	1.2 A	192 mOhm	Surface Mount	Nonstandard	125 °C	-40 C	8 mm	0.315 in	8 mm	0.315 in	4.6 mm	0.181 in	30 %	68 µH
Bourns Inc. SRU8043-4R7Y	Ferrite	100 kHz	Drum Core Wirewound	7.96 MHz 13	3.6 A	36 MHz	Shielded	4.6 A	17 mOhm	Surface Mount	Nonstandard	125 °C	-40 C	8 mm	0.315 in	8 mm	0.315 in	4.6 mm	0.181 in	30 %	4.7 ÁH
