794666 Series

Catalog

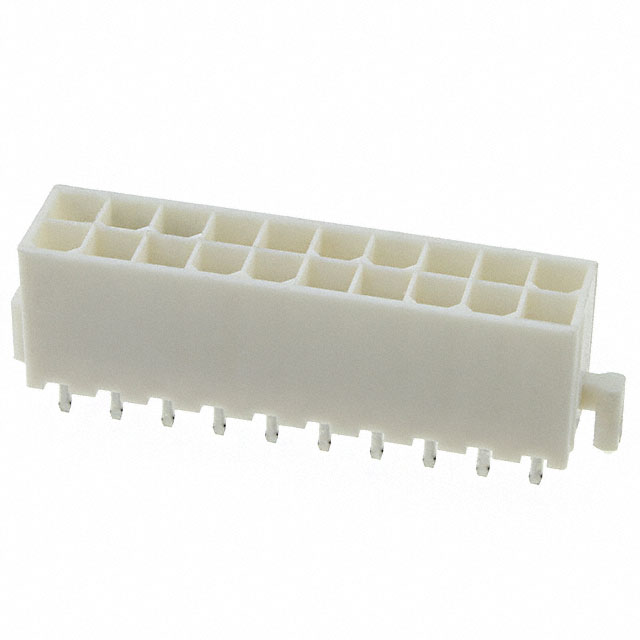

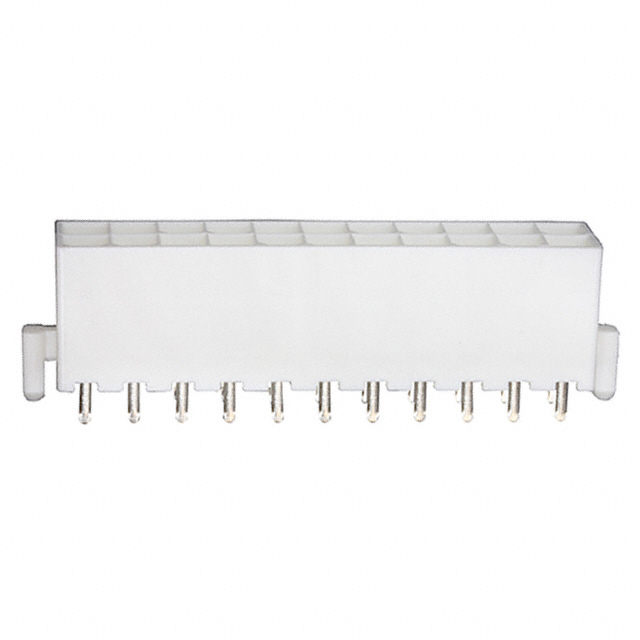

CONN HEADER VERT 22POS 4.2MM

Part	Insulation Color	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Contact Length - Post	Contact Length - Post	Mounting Type	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Style	Shrouding	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Number of Rows [custom]	Features	Contact Type	Fastening Type
TE Connectivity AMP Connectors 2-794666-2	White	Copper Alloy	22	-55 C	105 ░C	Tin-Lead	Nylon Polyamide (PA)	0.138 in	3.5 mm	Through Hole	600 VAC	12.8 mm	0.504 "	UL94 V-0	118.1 µin	3 µm	Tin-Lead	Solder	All	0.165 in	4.2 mm	Board to Board Cable	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	Square	2	Board Lock	Male Pin	Locking Ramp
TE Connectivity AMP Connectors 794666-6	White	Copper Alloy	6	-55 C	105 ░C	Tin-Lead	Nylon Polyamide (PA)	0.138 in	3.5 mm	Through Hole	600 VAC	12.8 mm	0.504 "	UL94 V-0	118.1 µin	3 µm	Tin-Lead	Solder	All	0.165 in	4.2 mm	Board to Board Cable	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	Square	2	Board Lock	Male Pin	Locking Ramp
TE Connectivity AMP Connectors 2-794666-0	White	Copper Alloy	20	-55 C	105 ░C	Tin-Lead	Nylon Polyamide (PA)	0.138 in	3.5 mm	Through Hole	600 VAC	12.8 mm	0.504 "	UL94 V-0	118.1 µin	3 µm	Tin-Lead	Solder	All	0.165 in	4.2 mm	Board to Board Cable	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	Square	2	Board Lock	Male Pin	Locking Ramp
