2821-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

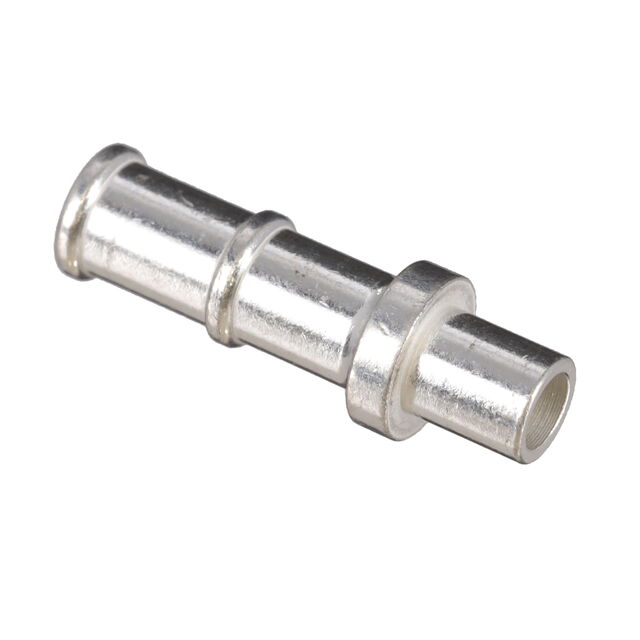

TERM TURRET SNG
| Part | Staking Side ID | Staking Side ID | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Turrets | Staking Side OD [diameter] | Staking Side OD [diameter] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Board Thickness [custom] | Board Thickness [custom] | Termination | Length - Above Board [x] | Length - Above Board [x] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.26 mm | 0.089 in | Single End | 3.18 mm | 0.125 in | Non-Insulated | 200 Áin | 5.08 Ám | Double | 0.122 in | 3.1 mm | Through Hole | 3.58 mm | 0.141 " | 0.187 in | 4.75 mm | 3.86 mm | 0.152 in | 0.094 in | 2.39 mm | Swage | 0.422 " | 10.72 mm | 0.563 in | 14.3 mm | Brass Alloy | Tin |
 Mill-Max Manufacturing Corp. | 2.26 mm | 0.089 in | Single End | 3.18 mm | 0.125 in | Non-Insulated | 300 µin | 7.62 µm | Double | 0.122 in | 3.1 mm | Through Hole | 3.58 mm | 0.141 " | 0.187 in | 4.75 mm | 3.86 mm | 0.152 in | 0.094 in | 2.39 mm | Swage | 0.422 " | 10.72 mm | 0.563 in | 14.3 mm | Brass Alloy | Silver |
Mill-Max Manufacturing Corp. | 2.26 mm | 0.089 in | Single End | 3.18 mm | 0.125 in | Non-Insulated | 200 Áin | 5.08 Ám | Double | 0.122 in | 3.1 mm | Through Hole | 3.58 mm | 0.141 " | 0.187 in | 4.75 mm | 3.86 mm | 0.152 in | 0.094 in | 2.39 mm | Swage | 0.422 " | 10.72 mm | 0.563 in | 14.3 mm | Brass Alloy | Tin-Lead |
