828548 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 5POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Material	Connector Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Shrouding	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions	Contact Type	Number of Positions Loaded	Insulation Color	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Fastening Type
TE Connectivity AMP Connectors 828548-5	78.7 µin	2 µm	Copper Alloy	Header	1	78.7 µin	2 µm	Tin	Shrouded - 2 Wall	UL94 V-0	8.8 mm	0.346 in	0.205 in	5.21 mm	Circular	5	Male Pin	All	Natural	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Solder	0.114 in	2.9 mm	Through Hole	Friction Lock

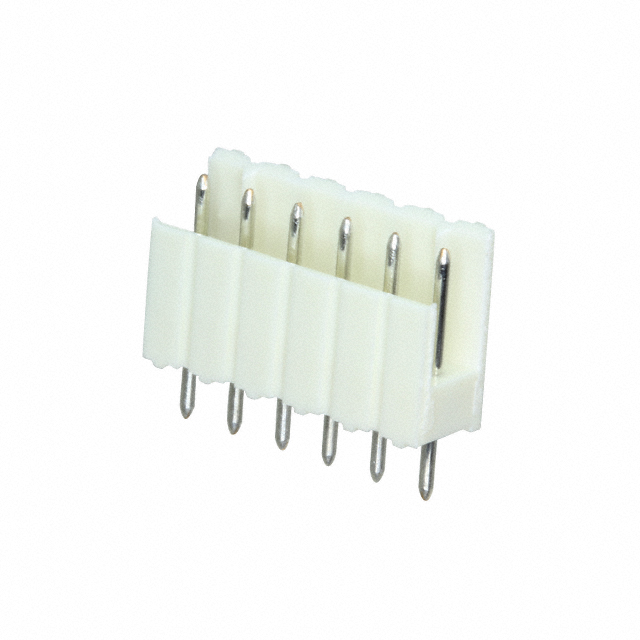

TE Connectivity AMP Connectors 828548-6	78.7 µin	2 µm	Copper Alloy	Header	1	78.7 µin	2 µm	Tin	Shrouded - 2 Wall	UL94 V-0	8.8 mm	0.346 in	0.205 in	5.21 mm	Circular	6	Male Pin	All	Natural	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Solder	0.114 in	2.9 mm	Through Hole	Friction Lock

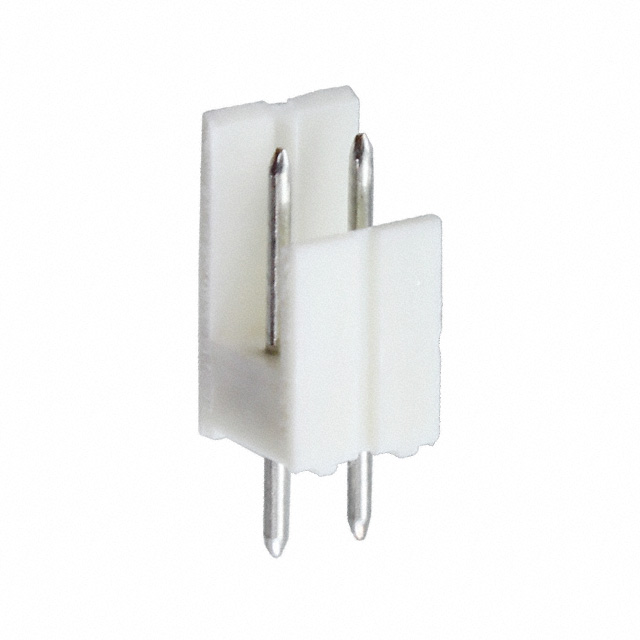

TE Connectivity AMP Connectors 828548-2	78.7 µin	2 µm	Copper Alloy	Header	1	78.7 µin	2 µm	Tin	Shrouded - 2 Wall	UL94 V-0	8.8 mm	0.346 in	0.205 in	5.21 mm	Circular	2	Male Pin	All	Natural	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Solder	0.114 in	2.9 mm	Through Hole	Friction Lock
TE Connectivity AMP Connectors 1-828548-3	78.7 µin	2 µm	Copper Alloy	Header	1	78.7 µin	2 µm	Tin	Shrouded - 2 Wall	UL94 V-0	8.8 mm	0.346 in	0.205 in	5.21 mm	Circular	13	Male Pin	All	Natural	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Solder	0.114 in	2.9 mm	Through Hole	Friction Lock
