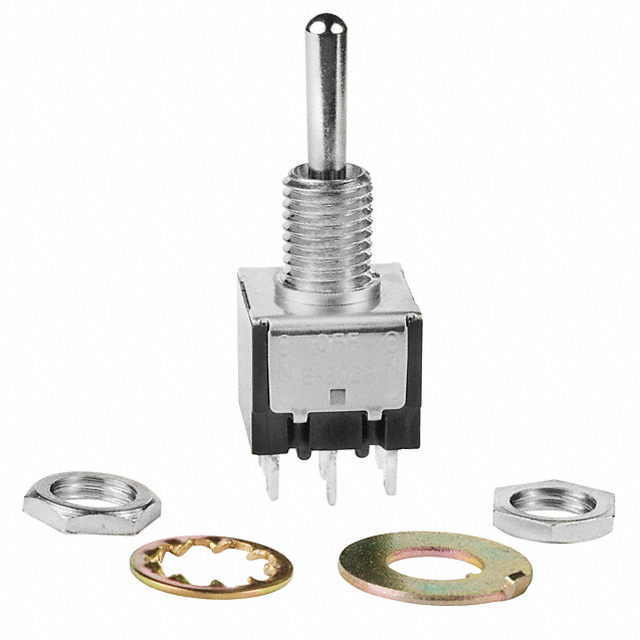

E2023P Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 3A 125V
| Part | Actuator Material | Electrical Life | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - AC | Actuator Length [x] | Current Rating (Amps) | Bushing Thread | Bushing Thread | Illumination | Termination Style | Mounting Type | Switch Function | Actuator Type | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 20000 Steps | 6.5 mm | DPDT | 125 V | 12 mm | 3 A | 0.75 | M6 | Non-Illuminated | PC Pin | Panel Mount | On-Off-On | Standard Round with Cap | White Cap | 70 °C | -10 °C |
