106397 Series

Manufacturer: Molex

Catalog

LC2+ DUP CONN MM 127 1.6MM STRAI

Part	Mounting Type	Boot Color	Fiber Cladding Diameter [diameter]	Simplex/Duplex	Housing Color	Mode	Features	Fastening Type	Cable Diameter [diameter]	Fiber Core Diameter [diameter]	Connector Style	Connector Type	Ferrule Material	Housing Material
Molex 1063972427	Free Hanging (In-Line)	White	127 µm	Duplex	Gold	Multimode	Strain Relief	Latch Lock	1.6 mm	3 µm	LC	Plug
Molex 1063975301	Free Hanging (In-Line)	Red	126 µm	Simplex	Blue	Singlemode		Snap-In	2 mm		LC	Plug	Ceramic
Molex 1063971662	Free Hanging (In-Line) Right Angle	Blue	125.5 µm	Duplex	Blue	Singlemode	Strain Relief	Latch Lock	2 mm	0.5 µm	LC	Plug
Molex 1063971310	Free Hanging (In-Line)	Green	125.5 µm	Simplex	Blue	Singlemode	Dust Cap Strain Relief	Latch Lock	2 mm	0.5 µm	LC			Aluminum
Molex 1063972202	Free Hanging (In-Line)	Blue	125.5 µm	Duplex	Blue	Singlemode	Dust Cap Strain Relief	Latch Lock	1.6 mm		LC	Plug	Ceramic
Molex 1063971910	Free Hanging (In-Line)	Green	125.5 µm	Simplex	Blue	Singlemode	Strain Relief	Latch Lock	0.9 mm		LC	Plug	Ceramic

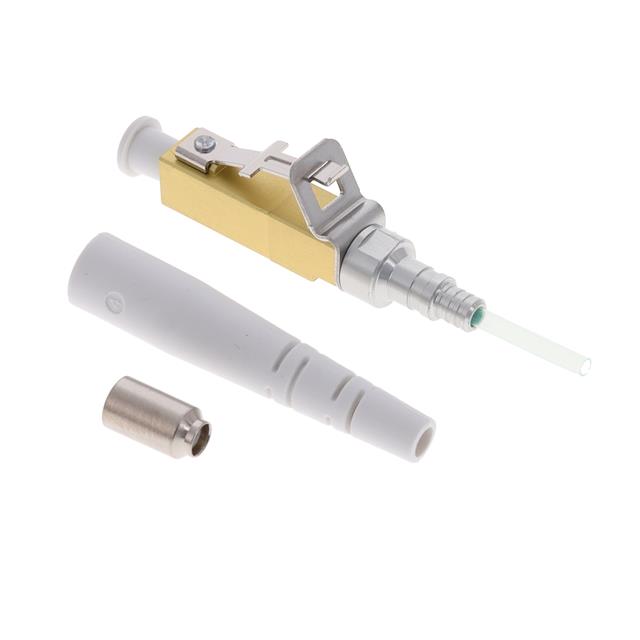

Molex 1063971502	Free Hanging (In-Line)	White	127 µm	Simplex	Gold	Multimode	Strain Relief	Latch Lock	2 mm	3 µm	LC	Plug	Ceramic Zirconia
Molex 1063971930	Free Hanging (In-Line)	Green	125.5 µm	Duplex	Blue	Singlemode	Strain Relief	Latch Lock	1.6 mm	0.5 µm	LC	Plug
Molex 1063971927	Free Hanging (In-Line)	Blue	125.5 µm	Simplex	Blue	Singlemode	Strain Relief	Latch Lock	1.6 mm		LC	Plug	Ceramic

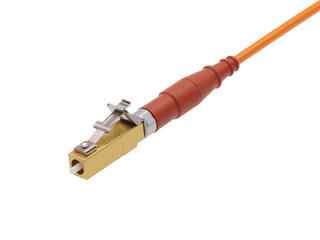

Molex 1063975500	Free Hanging (In-Line)	Red	127 µm	Simplex	Gold	Multimode	Strain Relief	Latch Lock	1.6 mm	3 µm	LC	Plug	Ceramic Zirconia
