IME08 Series

Catalog

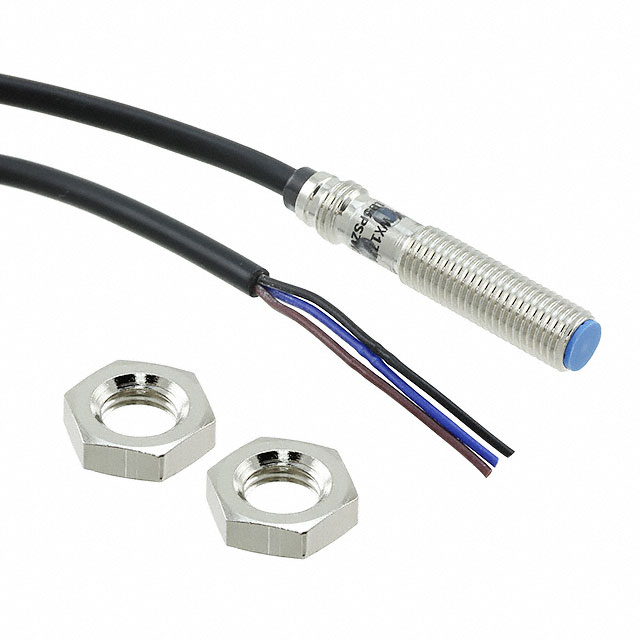

SENSOR PROX IND 1.5MM CYL 2M CBL

Part	Material - Body	Indicator	Sensor Type	Shielding	Output Type	Output Type	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Response Frequency
SICK, Inc. 1040843	Plastic	LED	Inductive	Shielded	3	PNP-NC	1.5 mm	0.059 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1047424	Plastic	LED	Inductive	Shielded	3	PNP-NO	2 mm	0.079 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz

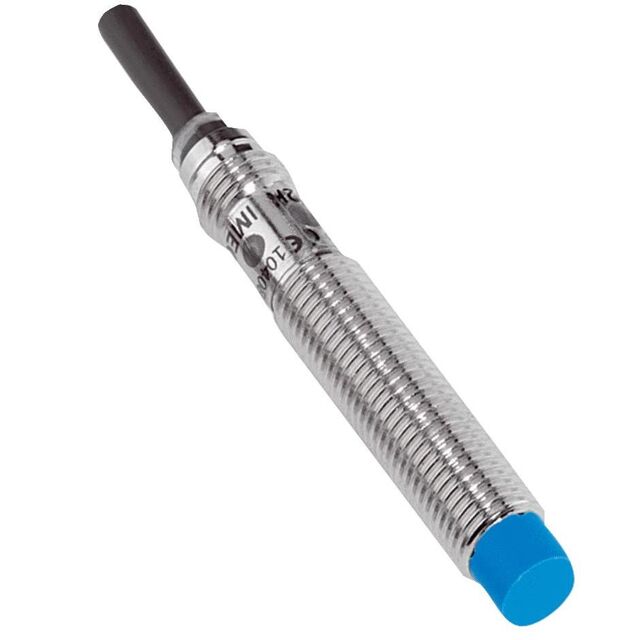

SICK, Inc. 1040888	Plastic	LED	Inductive	Shielded	3	PNP-NO	4 mm	0.157 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. IME08-04NNSZW2K	Plastic	LED	Inductive	Shielded		3-Wire NPN-NO	4 mm	0.157 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. IME08-02BNSZT0K	Plastic	LED	Inductive	Shielded		3-Wire NPN-NO	2 mm	0.079 in	-25 °C	75 °C	Cylinder Threaded - M8	Connector	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1040839	Nickel-Plated Brass	LED	Inductive	Unshielded	3	PNP-NO	1.5 mm	0.059 in	-25 °C	75 ░C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1040860	Plastic	LED	Inductive	Shielded	3	PNP-NC	2.5 mm	0.098 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1040848	Plastic	LED	Inductive	Shielded		3-Wire NPN-NO	1.5 mm	0.059 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1040859	Plastic	LED	Inductive	Shielded	3	PNP-NC	2.5 mm	0.098 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
SICK, Inc. 1040851	Plastic	LED	Inductive	Shielded		3-Wire NPN-NC	1.5 mm	0.059 in	-25 °C	75 °C	Cylinder Threaded - M8	Cable Leads	10 VDC	30 VDC	IP67	4 kHz
