PR49MF Series

Catalog

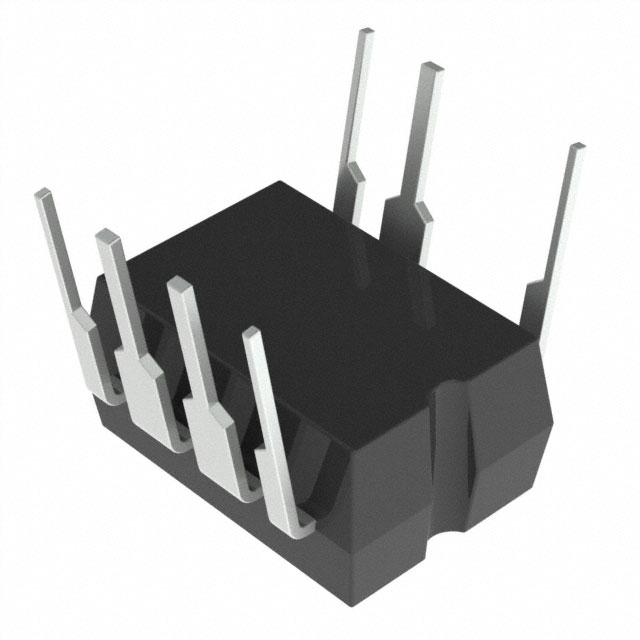

OPTOISO 4KV PWR TRIAC 1CH 8-DIP

Part	Current - On State (It (RMS)) (Max) [Max]	Turn On Time [Max]	Supplier Device Package	Voltage - Off State	Package / Case	Package / Case	Package / Case	Current - LED Trigger (Ift) (Max) [Max]	Static dV/dt (Min) [Min]	Mounting Type	Approval Agency	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation	Zero Crossing Circuit	Output Type	Current - Hold (Ih)
Sharp Microelectronics PR49MF11NSZF	900 mA	100 µs	8-DIP	800 V	7 Leads 8-DIP	7.62 mm	0.3 in	10 mA	50 V/µs	Through Hole	CSA UR	1	85 °C	-25 °C	50 mA	4000 VAC		Power Triac	50 mA
