PZC32 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 32POS 2.54MM

Part	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Material	Style	Contact Finish - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Material	Contact Type	Termination	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Shrouding	Contact Finish - Post	Number of Rows	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PZC32SAFN	Push-Pull	0.25 µm	10 µin	3 A	0.95 in	24.13 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold	15.75 mm	0.62 "	Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header
Sullins Connector Solutions PZC32SAAN	Push-Pull	0.25 µm	10 µin	3 A			UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header	11.43 mm	0.45 in	3.05 mm	0.12 in

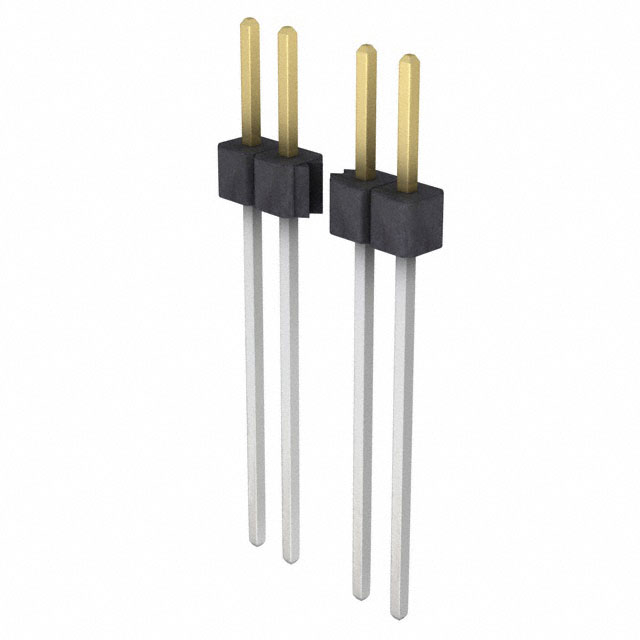

Sullins Connector Solutions PZC32SAGN	Push-Pull	0.25 µm	10 µin	3 A	1.05 in	26.67 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header			18.29 mm	0.72 "
Sullins Connector Solutions PZC32SFBN	Push-Pull	0.25 µm	10 µin	3 A	0.638 in	16.21 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.318 in	8.08 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header			5.58 mm	0.22 in
Sullins Connector Solutions PZC32DFEN	Push-Pull	0.25 µm	10 µin	3 A	0.938 in	23.83 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.318 in	8.08 mm	Black	Unshrouded	Tin		Square	2.54 µm	100 µin	Header			13.21 mm	0.52 in	2	0.1 in	2.54 mm	64

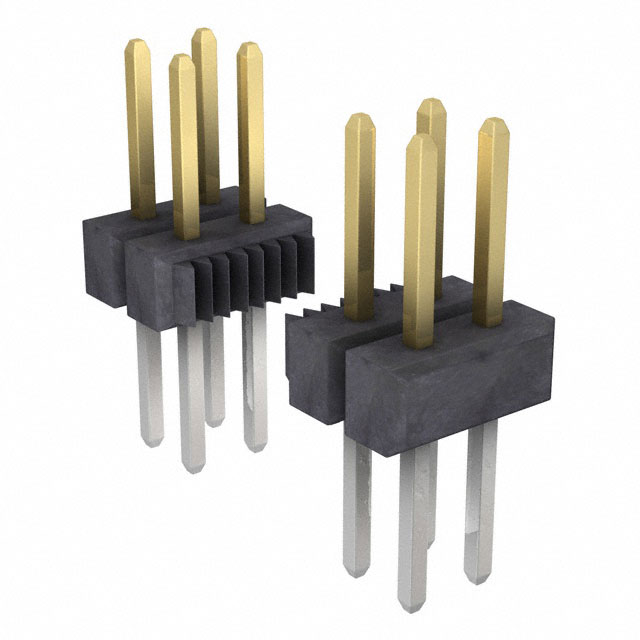

Sullins Connector Solutions PZC32DABN	Push-Pull	0.25 µm	10 µin	3 A	0.56 in	14.22 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin		Square	2.54 µm	100 µin	Header			5.84 mm	0.23 "	2	0.1 in	2.54 mm	64

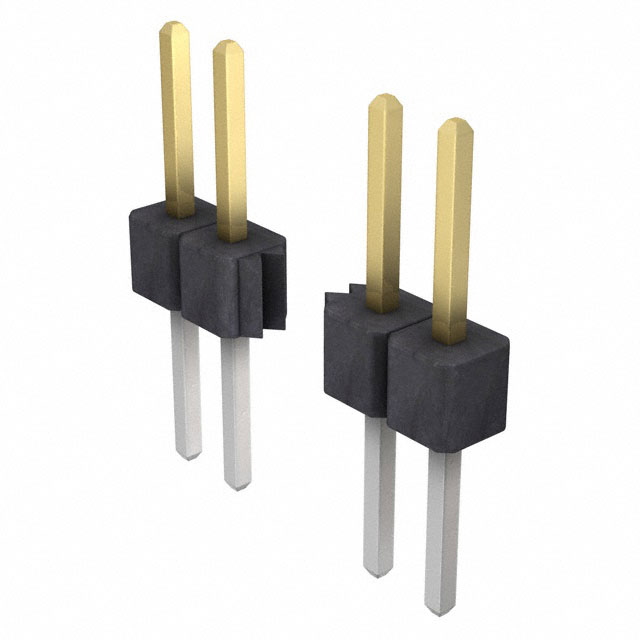

Sullins Connector Solutions PZC32SABN	Push-Pull	0.25 µm	10 µin	3 A	0.56 in	14.22 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header			5.84 mm	0.23 "

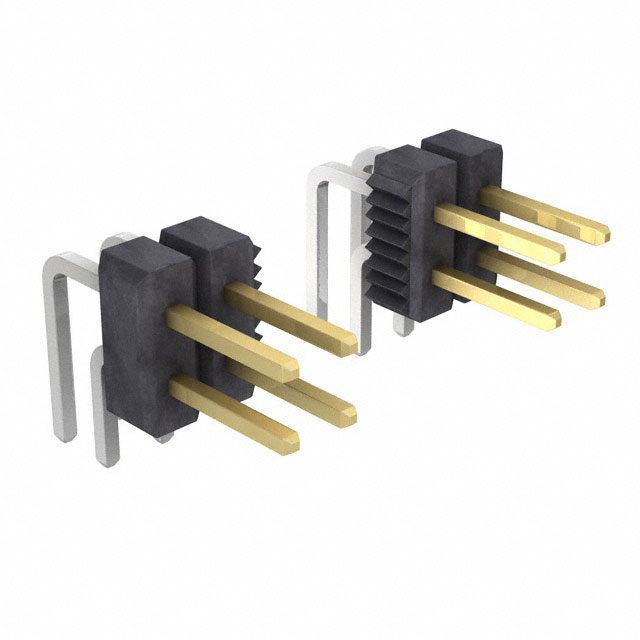

Sullins Connector Solutions PZC32DBAN	Push-Pull	0.25 µm	10 µin	3 A			UL94 V-0	0.1 "	2.54 mm			Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Right Angle Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin		Square	2.54 µm	100 µin	Header			3.05 mm	0.12 in	2	0.1 in	2.54 mm	64	6.1 mm	0.24 in

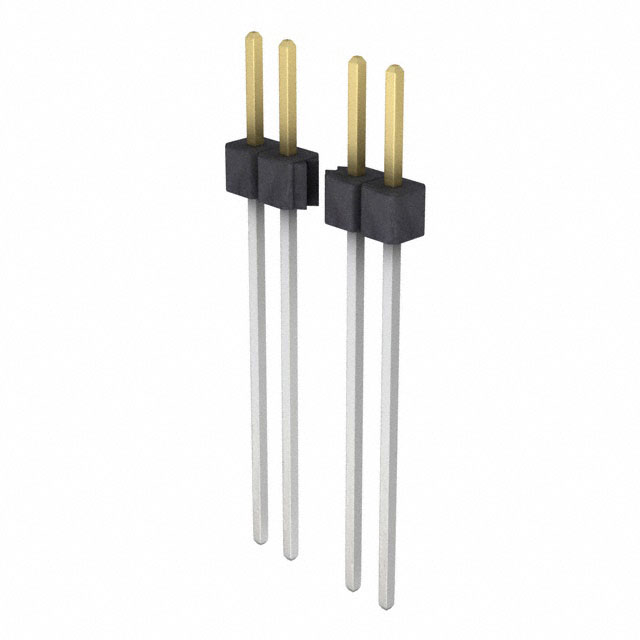

Sullins Connector Solutions PZC32SAHN	Push-Pull	0.25 µm	10 µin	3 A	1.15 in	29.21 mm	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin	1	Square	2.54 µm	100 µin	Header			20.83 mm	0.82 in
Sullins Connector Solutions PZC32DAAN	Push-Pull	0.25 µm	10 µin	3 A			UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Copper Alloy	Board to Board Cable	Gold			Polyester Thermoplastic	Male Pin	Solder	All	Through Hole	0.23 in	5.84 mm	Black	Unshrouded	Tin		Square	2.54 µm	100 µin	Header	11.43 mm	0.45 in	3.05 mm	0.12 in	2	0.1 in	2.54 mm	64
