LM4562 Series

Catalog

BOARD EVALUATION LM4562MA

Part	Output Type	Slew Rate	Board Type	Supplied Contents	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part	Channels per IC	Amplifier Type	Current - Supply (Main IC)	Gain Bandwidth Product	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Current - Supply	Mounting Type	Current - Input Bias	Package / Case	Package / Case	Package / Case	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Voltage - Supply Span (Max) [Max]
Texas Instruments LM4562MABD	Single-Ended	20 V/çs	Fully Populated	Board(s)	17 V	-2.5 V	LM4562	2 - Dual	Audio	10 mA
Texas Instruments LM4562HABD	Single-Ended	20 V/çs	Fully Populated	Board(s)	17 V	-2.5 V	LM4562	2 - Dual	Audio	10 mA
Texas Instruments LM4562NABD	Single-Ended	20 V/çs	Fully Populated	Board(s)	17 V	-2.5 V	LM4562	2 - Dual	Audio	10 mA
Texas Instruments LM4562NA/NOPB		20 V/çs							Audio		55 MHz	8-PDIP	5 V	10 mA	Through Hole	10 nA	0.3 in	8-DIP	7.62 mm	100 çV	85 °C	-40 °C	2	34 V
Texas Instruments LM4562HA/NOPB		20 V/çs							Audio		55 MHz	TO-99-8	5 V	10 mA	Through Hole	10 nA		TO-99-8 Metal Can		100 çV	85 °C	-40 °C	2	34 V

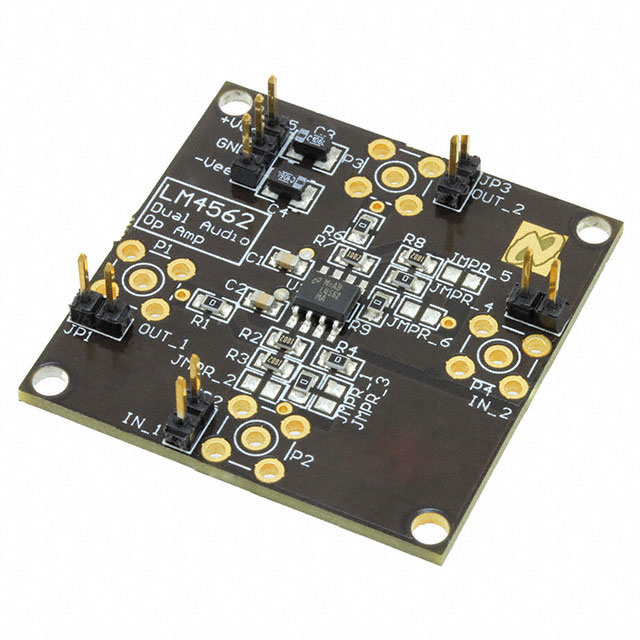

Texas Instruments LM4562MABD/NOPB	Single-Ended	20 V/çs	Fully Populated	Board(s)	17 V	-2.5 V	LM4562	2 - Dual	Audio	10 mA
