325001 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 6CIRC 0.325"
| Part | Terminal Screw Material | Mounting Type | Material - Insulation | Material Flammability Rating | Operating Temperature | Bottom Termination | Features | Voltage Rating | Pitch | Pitch | Current Rating (Amps) | Number of Rows | Top Termination | Number of Circuits | Number of Wire Entries | Terminal Block Type | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

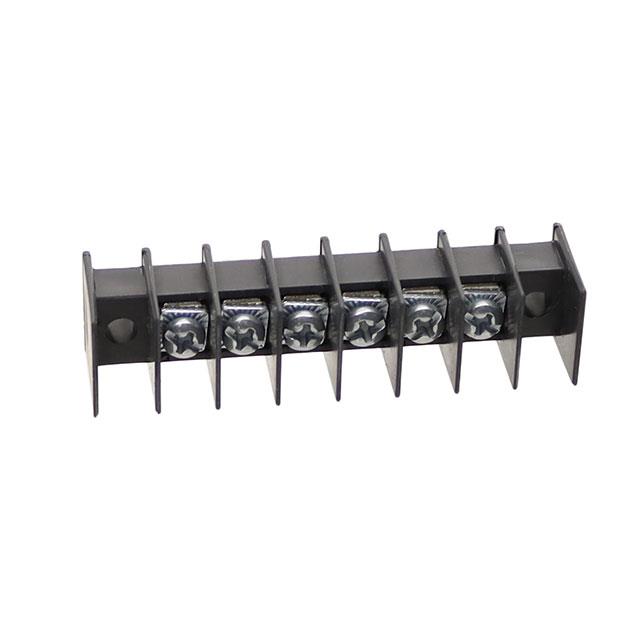

 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 6 | 6 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||

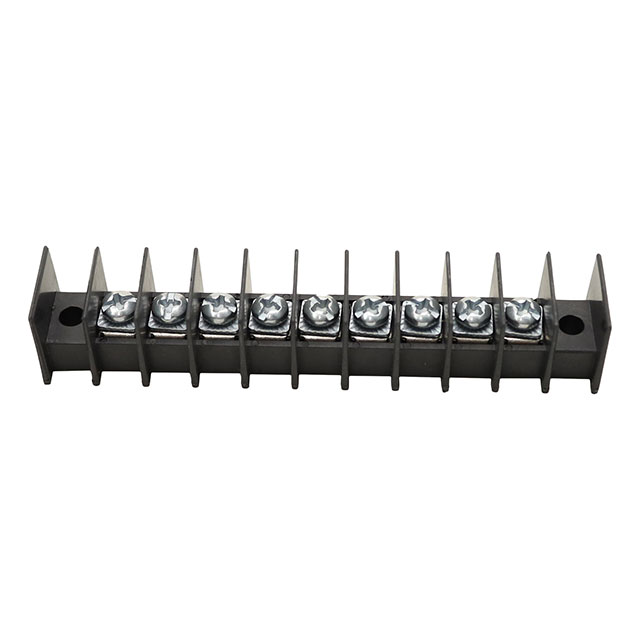

 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 9 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | 9 | ||
 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 24 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | |||
Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 21 | 21 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||
Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 15 | 15 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||
Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 18 | 18 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||

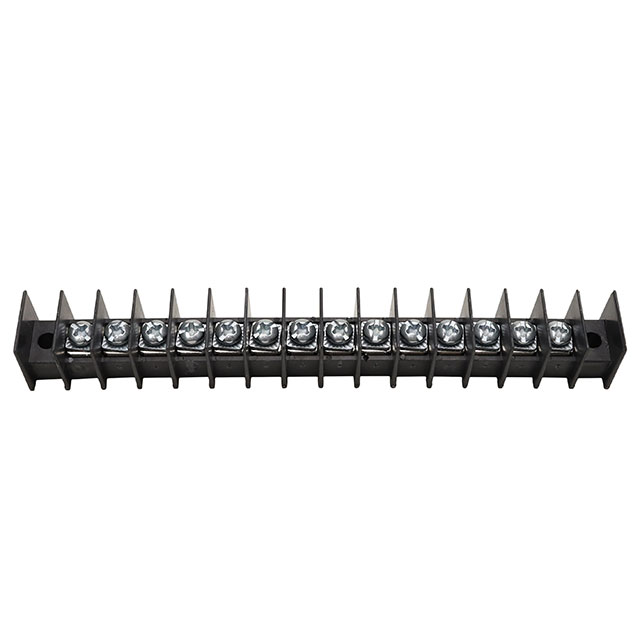

 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 14 | 14 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||
Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 19 | 19 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||

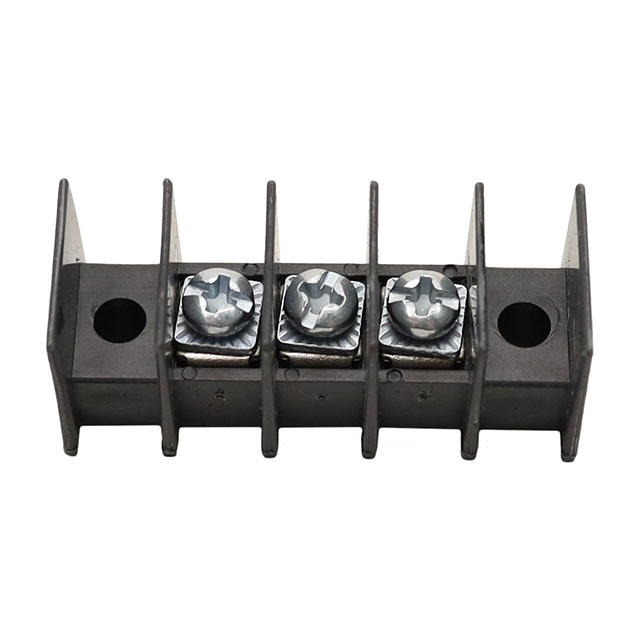

 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 3 | 3 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | ||

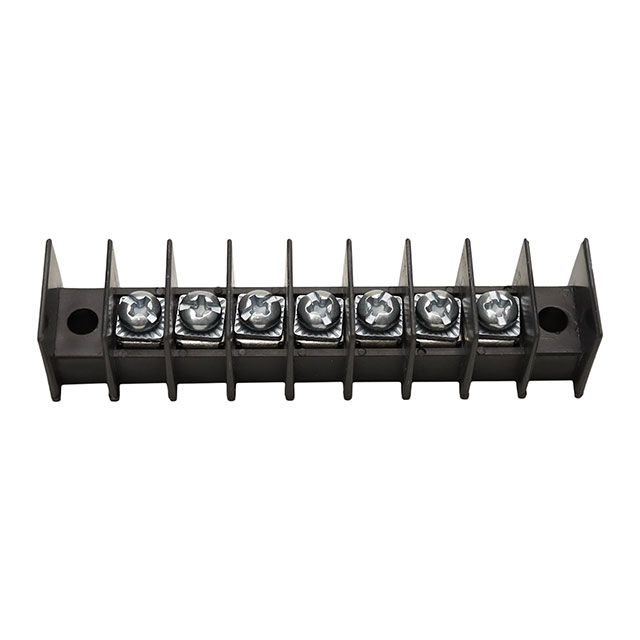

 Curtis Industries | Steel | Chassis Panel | Polypropylene (PP) | UL94 V-0 | 105 C | Closed | Flange | 300 VDC | 0.325 in | 8.26 mm | 15 A | 1 | Screws | 7 | Barrier Block | 14 AWG | 22 AWG | 2 Wall (Dual) | 7 |
