RPS-400 Series

Catalog

AC/DC CONVERTER 18V 250W

Part	Type	Number of Outputs	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Mounting Type	Current - Output 1	Power (Watts)	Power (Watts)	Efficiency	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1 [custom]	Size / Dimension [z]	Size / Dimension [y]

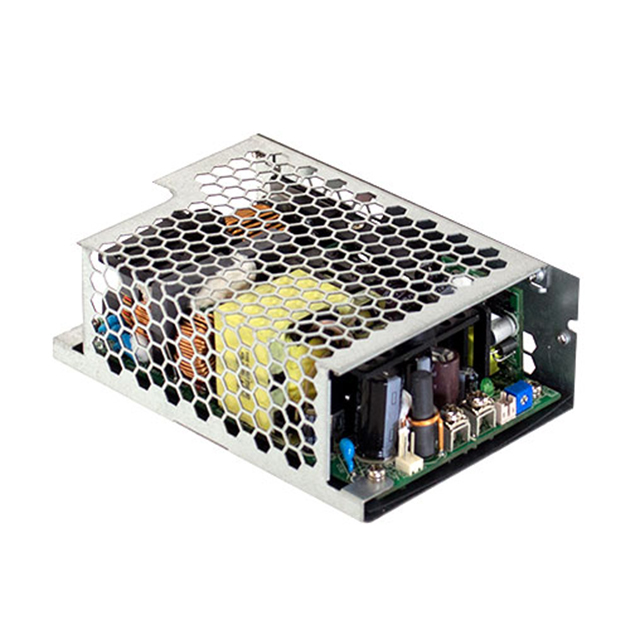

MEAN WELL USA Inc. RPS-400-18-C	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C	18 V	Chassis Mount	13.9 A	401 W	250 W	93 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC

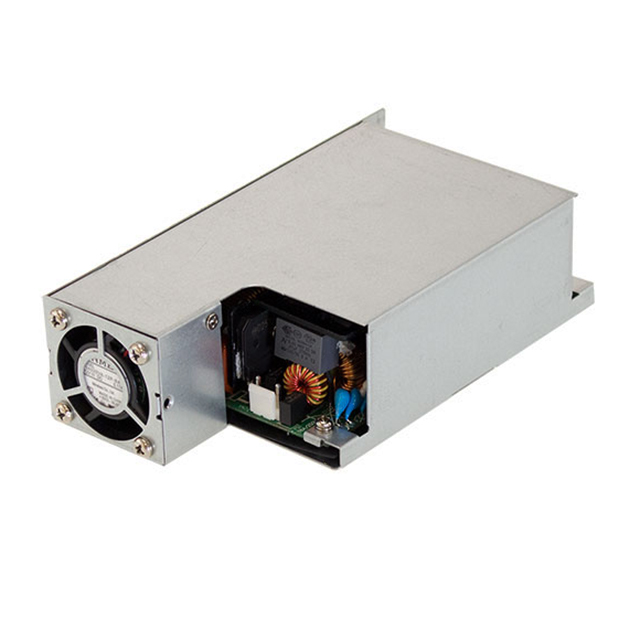

MEAN WELL USA Inc. RPS-400-36-SF	Enclosed	1	Adjustable Output Remote Sense Universal Input	160 mm	42.9 mm	1.69 in	86.1 mm	6.3 in	3.39 "	Medical	4000 V	-30 °C	70 °C		Chassis Mount	7 A		252 W 403 W	94 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC	36 V
MEAN WELL USA Inc. RPS-400-36-C	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C		Chassis Mount	7 A		252 W 403 W	94 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC	36 V

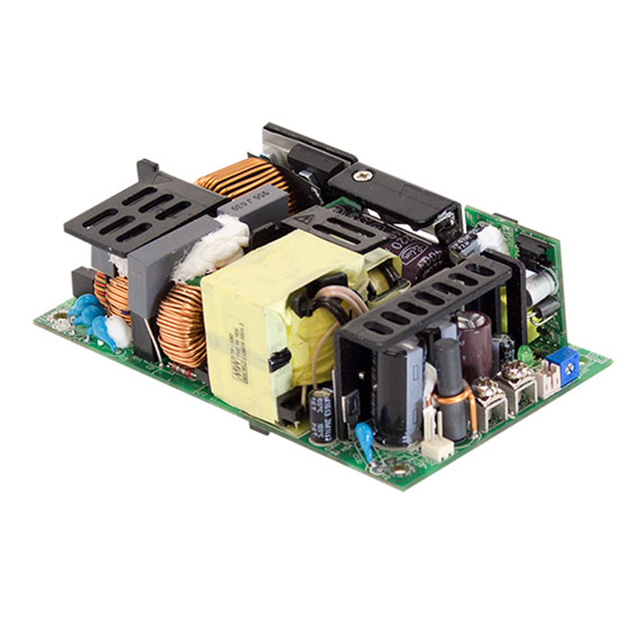

MEAN WELL USA Inc. RPS-400-36	Open Frame	1	Adjustable Output Remote Sense Universal Input	127 mm		1.37 in		5 "	3 "	Medical	4000 V	-30 °C	70 °C		Chassis Mount	7 A		252 W 403 W	94 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC	36 V	34.8 mm	76.2 mm

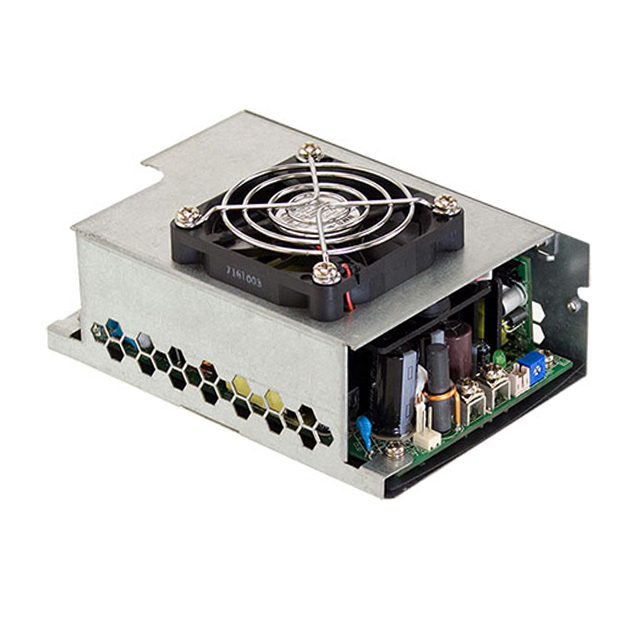

MEAN WELL USA Inc. RPS-400-18-TF	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	66.5 mm	2.62 "	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C	18 V	Chassis Mount	13.9 A	401 W	250 W	93 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RPS-400-15	Open Frame	1	Adjustable Output Remote Sense Universal Input	127 mm		1.37 in		5 "	3 "	Medical	4000 V	-30 °C	70 °C	15 V	Chassis Mount	16.7 A		251 W 401 W	92 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC		34.8 mm	76.2 mm
MEAN WELL USA Inc. RPS-400-48	Open Frame	1	Adjustable Output Remote Sense Universal Input	127 mm		1.37 in		5 "	3 "	Medical	4000 V	-30 °C	70 °C	48 V	Chassis Mount	5.3 A	403 W	254 W	94 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC		34.8 mm	76.2 mm
MEAN WELL USA Inc. RPS-400-36-TF	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	66.5 mm	2.62 "	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C		Chassis Mount	7 A		252 W 403 W	94 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC	36 V
MEAN WELL USA Inc. RPS-400-15-TF	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	66.5 mm	2.62 "	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C	15 V	Chassis Mount	16.7 A		251 W 401 W	92 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RPS-400-12-C	Enclosed	1	Adjustable Output Remote Sense Universal Input	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Medical	4000 V	-30 °C	70 °C	12 V	Chassis Mount	20.8 A		250 W	91.5 %	CB CE cURus TUV	80 VAC 113 VDC	264 VAC 370 VDC
