0997-8 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

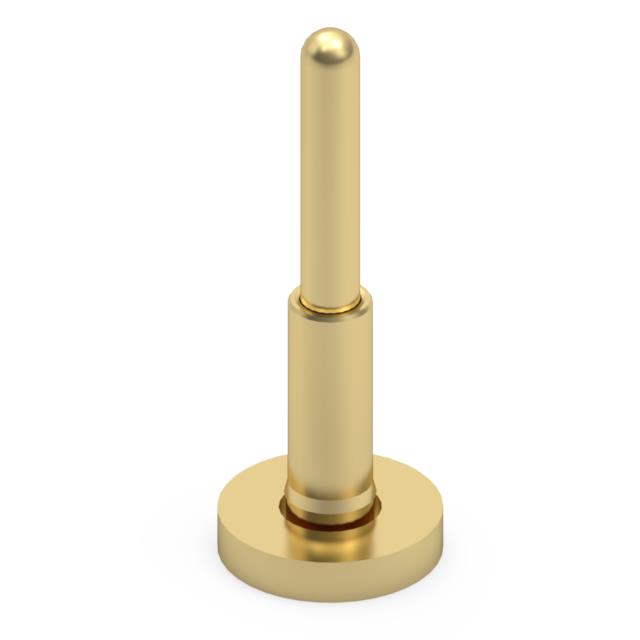

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Operating Force - Initial | Current Rating (Amps) | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Type | Mating Cycles | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.159 in | 4.04 mm | Brass Alloy | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 9.71 mm | 0.382 in | 10 gf | 5.2 A | 60 gf | 10.41 mm | 0.41 in | Surface Mount | 9.01 mm | 0.355 in | Sleeve & Plunger (Pogo Pins) | 1000000 | Gold |
