19433240 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, DL-M32, W/COVER, BASE, CABLE MOUNT, SIDE ENTRY
| Part | Lock Location | Style | Housing Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Ingress Protection | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

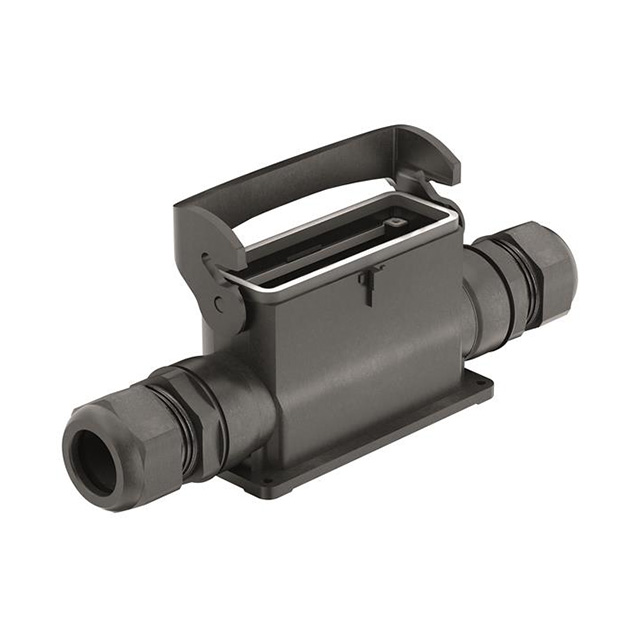

 HARTING | Locking Clip (2) on Hood | Side Entry Dual | Black | 144 mm | 65 mm | 5.669 in | 2.559 " | 88 mm | 3.465 " | 24 B | M32 | 125 °C | -40 C | Base - Box Mount | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | |
 HARTING | Locking Clip (1) on Base Bottom | Side Entry | Black | 144 mm | 65 mm | 5.669 in | 2.559 " | 88 mm | 3.465 " | 24 B | M32 | 125 °C | -40 C | Base - Box Mount | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Feed Through |

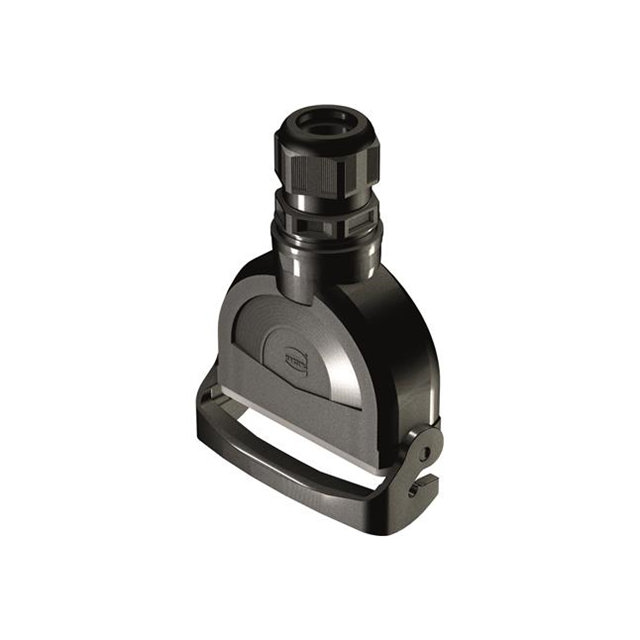

 HARTING | Locking Clip (1) on Hood | Top Entry Top or Bottom Entry | Black | 24 B | 125 °C | -40 C | Hood - Coupling | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Cable to Cable | |||||||

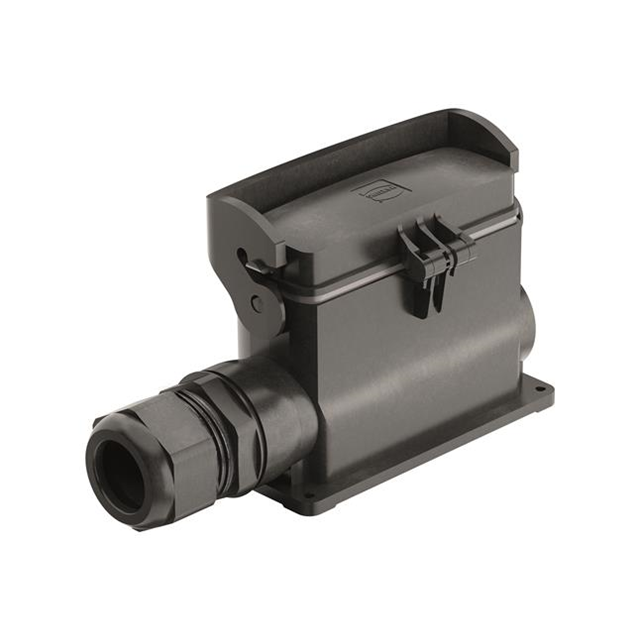

 HARTING | Locking Clip (1) on Base Bottom | Side Entry | Black | 144 mm | 65 mm | 5.669 in | 2.559 " | 88 mm | 3.465 " | 24 B | M25 | 125 °C | -40 C | Base - Box Mount | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Cover |

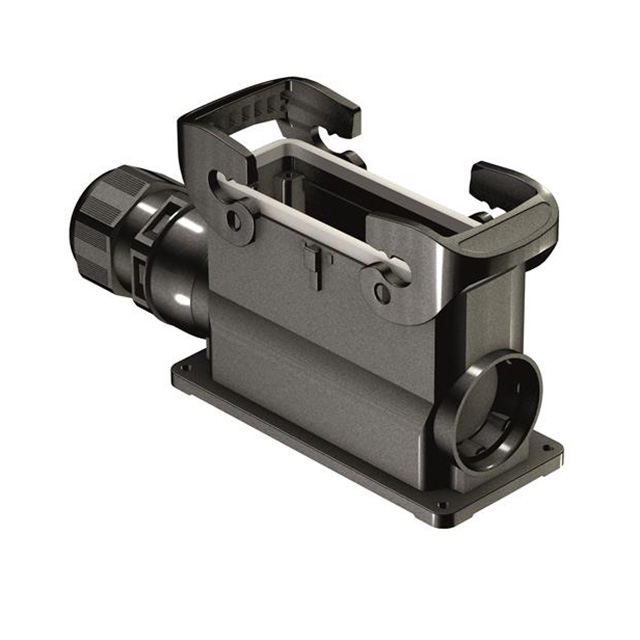

 HARTING | Locking Clip (2) on Base Bottom | Side Entry | Black | 144 mm | 65 mm | 5.669 in | 2.559 " | 88 mm | 3.465 " | 24 B | 125 °C | -40 C | Base - Box Mount | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | ||

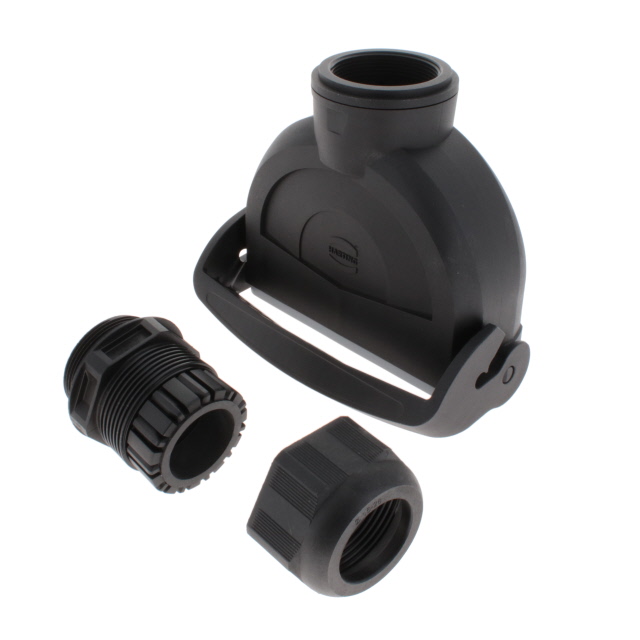

 HARTING | Locking Clip (1) on Hood | Top Entry Top or Bottom Entry | Black | 24 B | M32 | 125 °C | -40 C | Hood - Coupling | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Cable to Cable |
