53S102 Series
Manufacturer: Rosenberger
Beta
⌘K

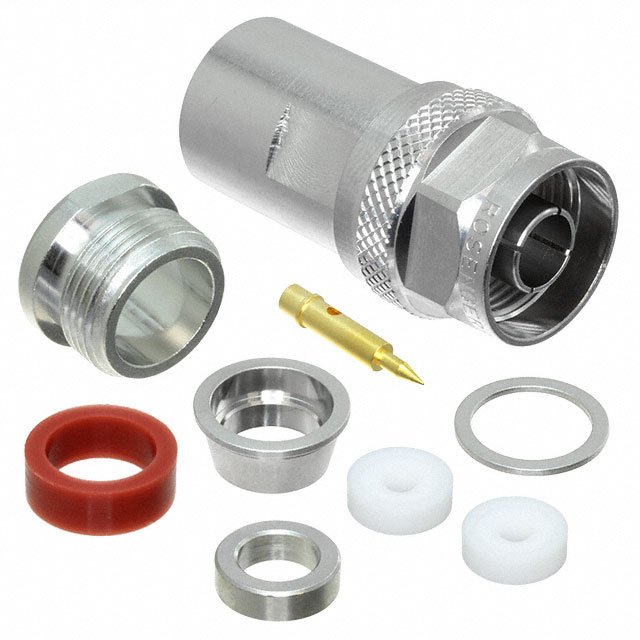

CONN N TYPE PLG STR 50OHM SOLDER
| Part | Includes | Body Material | Body Finish | Insertion Loss | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Voltage Rating | Shield Termination | Impedance | Housing Color | Connector Style | Mounting Type | Number of Ports | Contact Termination | Connector Type | Center Contact Material | Frequency - Max [Max] | Ingress Protection | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Nut 1 Sleeve 1 Washer 2 Insulators | Brass | White Bronze | 0.05 dB | Gold | 155 C | -55 C | 500 | Polytetrafluoroethylene (PTFE) | 500 V | Clamp | 50 Ohms | Silver | N Type | Free Hanging (In-Line) | 1 | Solder | Plug Male Pin | Brass | 11 GHz | IP67 - Dust Tight Waterproof | Threaded | 214 393 RG-213 |
